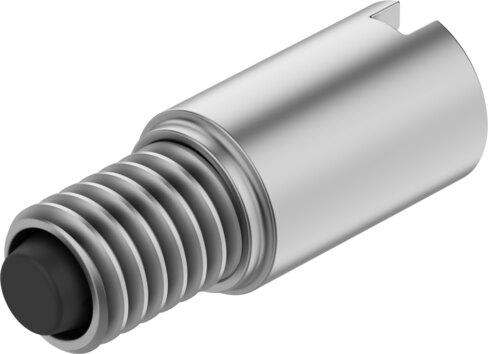

Name: Festo 8159474 Shock absorber DYEF-G8-S-M10-Y1
Brand: Festo

Shock absorber DYEF-G8-S-M10-Y1

The Festo part number 8159474 is an industrial component featuring an M10 size and a 1 mm stroke with a 1 mm cushioning length. Built with a high-alloy steel housing and NBR seals, it provides elastic cushioning rings or pads at both ends without a fixed metal stop, operating at a maximum impact velocity of 0.8 m/s and a maximum energy absorption per stroke of 0.25 J. This unit supports any mounting position via threaded sleeve with a maximum tightening torque of 3 Nm, features a corrosion resistance class of CRC 2, and weighs 26 g with RoHS compliance and VDMA24364-B2-L LABS conformity for ambient temperatures between 0 °C and 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8159474
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8159474.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: M10
Stroke: 1 mm
Cushioning: Elastic cushioning rings/pads at both ends, without xed metal stop
Mounting position: Any
Position sensing: None
Max. impact velocity: 0.8 m/s
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: 0 °C...60 °C
Cushioning length: 1 mm
Max. tightening torque: 3 Nm
Max. energy absorption per stroke: 0.25 J
Product weight: 26 g
Type of mounting: With threaded sleeve
Note on materials: RoHS compliant
Seals material: NBR
Housing material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8159474. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
