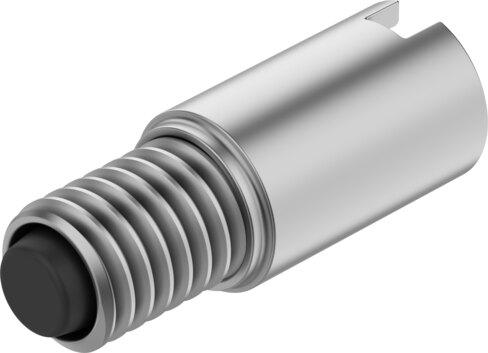

Reference imageConfirm configuration by manufacturer part number.
Festo
8159475
Shock absorber DYEF-G8-S-M12-Y1
This Festo industrial component, part number 8159475, features an M12 size with a 1.2 mm stroke and incorporates elastic cushioning rings at both ends without a fixed metal stop. Constructed with a high-alloy steel housing and NBR seals, the unit weighs 41 g, supports any mounting position via a threaded sleeve, and handles a maximum impact velocity of 0.8 m/s with a maximum tightening torque of 5 Nm. Operating within an ambient temperature range of 0 °C to 60 °C, the part achieves a maximum energy absorption of 0.35 J per stroke and meets CRC 2 moderate corrosion stress standards with VDMA24364-B2-L LABS conformity and RoHS compliance. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8159475
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8159475.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M12
- Stroke
- 1.2 mm
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 1.2 mm
- Max. tightening torque
- 5 Nm
- Max. energy absorption per stroke
- 0.35 J
- Product weight
- 41 g
- Type of mounting
- With threaded sleeve
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
