Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

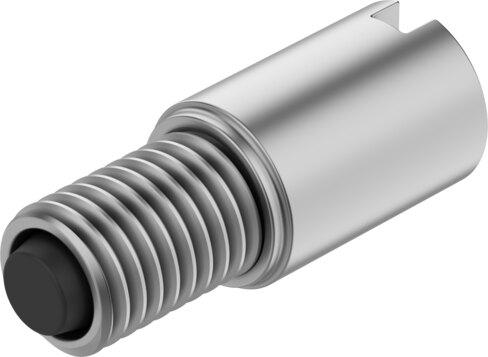

Reference imageConfirm configuration by manufacturer part number.
Festo
8159476
Shock absorber DYEF-G8-S-M14-Y1
The Festo 8159476 is an M14 industrial component featuring a 1.2 mm stroke and elastic cushioning rings or pads at both ends without a fixed metal stop. Constructed with a high-alloy steel housing and NBR seals, this 67 g part accommodates any mounting position via threaded sleeve and provides a maximum tightening torque of 8 Nm, an energy absorption capacity of 0.45 J per stroke, and an impact velocity limit of 0.8 m/s within an ambient temperature range of 0 °C to 60 °C. It features a CRC rating of 2 for moderate corrosion stress, VDMA24364-B2-L LABS conformity, and RoHS-compliant materials. Submit part number 8159476, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8159476
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8159476.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M14
- Stroke
- 1.2 mm
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 1.2 mm
- Max. tightening torque
- 8 Nm
- Max. energy absorption per stroke
- 0.45 J
- Product weight
- 67 g
- Type of mounting
- With threaded sleeve
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8159476. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
