Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

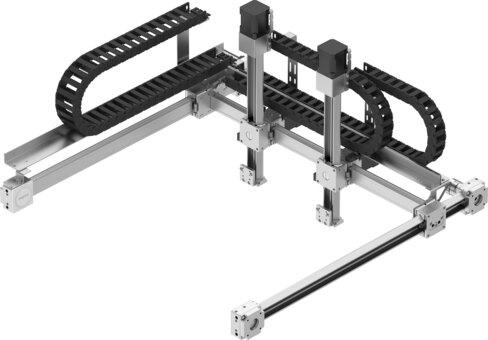

Reference imageConfirm configuration by manufacturer part number.
Festo
8159775
Three-dimensional gantry EXCL-15-
The Festo 8159775 is an industrial space portal system featuring a size 15 structural design configured for horizontal mounting positions with stepper motors. It provides an X-axis stroke from 200 mm to 1000 mm, a Y-axis stroke from 200 mm to 700 mm, a maximum acceleration of 1 m/s², a maximum speed of 0.5 m/s, and a repetition accuracy of ±0.1 mm. X-axis specifications include a nominal voltage of 1.68 V, nominal current of 4.2 A, max search velocity of 0.03 m/s, and max creep velocity of 0.003 m/s, while the Y-axis operates at 3.2 V nominal voltage and 2 A nominal current with matching search and creep velocities. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8159775
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8159775.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 15
- Stroke of the X-axis
- 200 mm...1000 mm
- Stroke of the Y-axis
- 200 mm...700 mm
- Mounting position
- Horizontal
- Structural design
- Space portal system
- Motor type
- Stepper motor
- Max. acceleration
- 1 m/s²
- Max. speed
- 0.5 m/s
- Repetition accuracy
- ±0.1 mm
- Max. search velocity X-axis
- 0.03 m/s
- Max. creep velocity X-axis
- 0.003 m/s
- Max. search velocity Y-axis
- 0.03 m/s
- Max. creep velocity Y-axis
- 0.003 m/s
- Max. search velocity Z-axis
- 0.015 m/s
- Max. creep velocity Z-axis
- 0.003 m/s
- Nominal voltage X-axis
- 1.68 V
- Nominal voltage Y-axis
- 3.2 V
- Nominal voltage Z-axis
- 3.2 V
- Nominal current X-axis
- 4.2 A
- Nominal current Y-axis
- 2 A
- Nominal current Z-axis
- 2 A
- Nominal current per phase, effective
- 2 A...4.2 A
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -10 °C...60 °C
- Relative air humidity
- 0 - 90%
- Degree of protection
- IP10
- Ambient temperature
- 10 °C...40 °C
- Motor holding torque
- 0.5 Nm...1.4 Nm
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8159775. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
