Reference imageConfirm configuration by manufacturer part number.
Festo
8160238

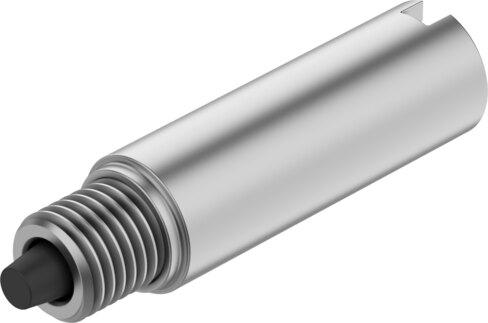

Shock absorber DYEF-G8-M10-Y1F
The Festo 8160238 is an industrial component featuring an M10 size, a 3.7 mm stroke, and a product weight of 37.6 g with mounting via a threaded sleeve in any position. Constructed with a high-alloy steel housing and NBR seals, it provides elastic cushioning rings or pads at both ends with a metallic fixed stop, supporting a maximum impact velocity of 0.8 m/s and a maximum energy absorption per stroke of 0.06 J. This RoHS-compliant unit operates in ambient temperatures from 0 °C to 60 °C, exhibits a CRC rating of 2 for moderate corrosion stress, and conforms to VDMA24364-B2-L LABS standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8160238
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8160238.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M10
- Stroke
- 3.7 mm
- Cushioning
- Elastic cushioning rings/pads at both ends with metallic xed stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 3.7 mm
- Max. tightening torque
- 3 Nm
- Max. energy absorption per stroke
- 0.06 J
- Product weight
- 37.6 g
- Type of mounting
- With threaded sleeve
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8160238. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
