Festo
8161059

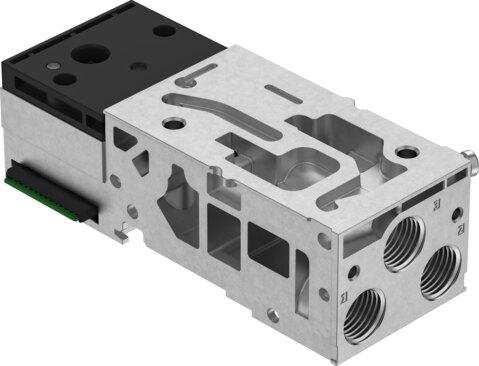

Sub-base VMPA-FB-AP-1-EMM-P5-SK
This Festo industrial component, part number 8161059, is constructed with a die-cast aluminum sub-base and features a width of 42 mm, a length of 107.3 mm, a width dimension of 41 mm, and a product weight of 175 g. It accommodates up to 4 valve positions and includes a G1/4 pneumatic connection 1, operating within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). The unit conforms to VDMA24364 Zone III LABS conformity, has a corrosion resistance class of CRC 0, features RoHS-compliant materials, and functions within a storage temperature of -20 °C to 60 °C and an ambient temperature of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161059
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161059.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Length
- 107.3 mm
- Width dimension
- 41 mm
- Max. no. of valve positions
- 4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 175 g
- Pneumatic connection 1
- G1/4
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8161059. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
