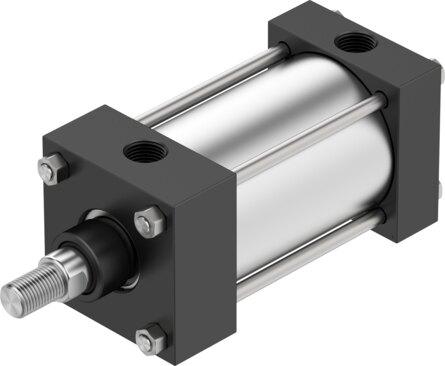

Reference imageConfirm configuration by manufacturer part number.
Festo
8161114
Standards-based cylinder DSNB-N-...-3 1/4"- -
The Festo 8161114 is an industrial component featuring a 3 1/4" piston diameter, an adjustable stroke ranging from 0.0625 in to 98.9 in, and a structural design comprising a piston, piston rod, tie rod, and cylinder barrel. This NFPA/T3.6.7 standard-conforming unit operates in any mounting position and offers versatile configuration options including multiple piston rod thread types, end styles, cushioning types, position sensing modes, and port or mounting variants. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161114
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161114.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.0625 in...98.9 in
- Piston diameter
- 3 1/4"
- Piston rod thread
- 7/8-14 UNF-2A | 3/4-16 UNF-2B | 3/4-16 UNF-2A | 1-14 UNS-2B | 1-14 UNS-2A | 1 1/4-12 UNF-2A
- Cushioning
- Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends | No cushioning | Pneumatic cushioning at both ends, non-adjustable | Pneumatic cushioning at the front, non-adjustable | Pneumatic cushioning at the rear, non-adjustable | Pneumatic cushioning at the front, adjustable | Pneumatic cushioning at the rear, adjustable
- Mounting position
- Any
- Conforms to standard
- NFPA/T3.6.7
- Piston rod end
- External thread | External threaded bolt | Internal thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch | None
- Variants
- Supply port, rotated 180° | Supply port, rotated 270° | Supply port, rotated 90° | Supply port, lateral | Flange on the end cap | Flange on the bearing cap | Foot mounting | Noise reduction on both sides | Extended external thread piston rod | Extended piston rod | Direct mounting via thread, frontal | Swiveling rod eye mounting on the end cap | Trunnion mounting on bearing cap
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8161114. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
