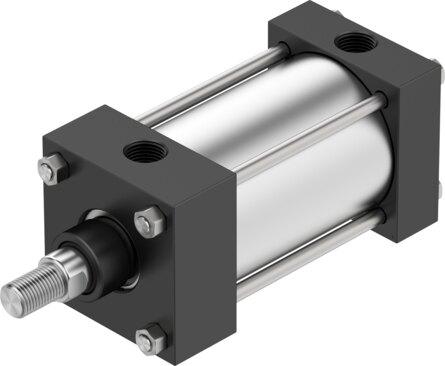

Name: Festo 8161115 Standards-based cylinder DSNB-N-...-4"- -
Brand: Festo

Standards-based cylinder DSNB-N-...-4"- -

This Festo industrial component features a 4" piston diameter, an NFPA/T3.6.7 standard-conforming structural design, and stroke lengths ranging from 0.0625" to 98.9". Configured with multiple piston rod thread and end options, adjustable or non-adjustable pneumatic and elastic cushioning variants, and optional position sensing, it accommodates any mounting position and diverse supply port orientations. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8161115
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8161115.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 0.0625 in...98.9 in
Piston diameter: 4"
Piston rod thread: 7/8-14 UNF-2A | 3/4-16 UNF-2B | 3/4-16 UNF-2A | 1-14 UNS-2B | 1-14 UNS-2A | 1 1/4-12 UNF-2A
Cushioning: Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends | No cushioning | Pneumatic cushioning at both ends, non-adjustable | Pneumatic cushioning at the front, non-adjustable | Pneumatic cushioning at the rear, non-adjustable | Pneumatic cushioning at the front, adjustable | Pneumatic cushioning at the rear, adjustable
Mounting position: Any
Conforms to standard: NFPA/T3.6.7
Piston rod end: External thread | External threaded bolt | Internal thread
Structural design: Piston | Piston rod | Tie rod 1 | Cylinder barrel
Position sensing: Via proximity switch | None
Variants: Supply port, rotated 180° | Supply port, rotated 270° | Supply port, rotated 90° | Supply port, lateral | Flange on the end cap | Flange on the bearing cap | Foot mounting | Noise reduction on both sides | Extended external thread piston rod | Extended piston rod | Direct mounting via thread, frontal | Swiveling rod eye mounting on the end cap | Trunnion mounting on bearing cap

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8161115. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
