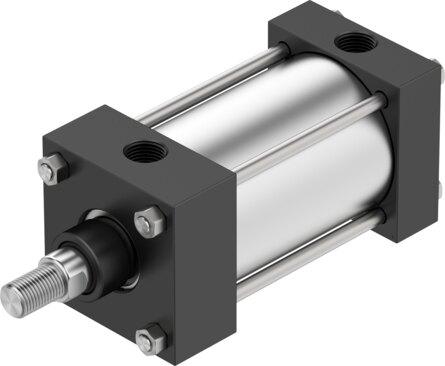

Reference imageConfirm configuration by manufacturer part number.
Festo
8161117
Standards-based cylinder DSNB-N-...-6"- -
Festo Standards-based cylinder DSNB-N-...-6"- -, part number 8161117, is documented in the official Festo United States product data sheet. Review the technical specifications and operating conditions below when requesting a quotation.
Request pricing and availabilityCommercial response for your destination and required quantity.
Request a Quote- Manufacturer
- Festo
- Part number
- 8161117
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161117.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationTechnical documents are stored and served from our system.
Verified configuration
Technical Specifications
Identification and family-level technical context are preserved from reviewed source evidence and official English-language manufacturer documentation.
- Stroke
- 0.0625 in...98.9 in
- Piston diameter
- 6"
- Piston rod thread
- 1-14 UNS-2B | 1-14 UNS-2A | 1 1/4-12 UNF-2B | 1 1/4-12 UNF-2A | 1 1/2-12 UNF-2A
- Cushioning
- Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends | No cushioning | Pneumatic cushioning at both ends, non-adjustable | Pneumatic cushioning at the front, non-adjustable | Pneumatic cushioning at the rear, non-adjustable | Pneumatic cushioning at the front, adjustable | Pneumatic cushioning at the rear, adjustable
- Mounting position
- Any
- Conforms to standard
- NFPA/T3.6.7
- Piston rod end
- External thread | External threaded bolt | Internal thread
- Structural design
- Piston | Piston rod | Tie rod 1 | Cylinder barrel
- Position sensing
- Via proximity switch | None
- Variants
- Supply port, rotated 180° | Supply port, rotated 270° | Supply port, rotated 90° | Supply port, lateral | Flange on the end cap | Flange on the bearing cap | Foot mounting | Noise reduction on both sides | Extended external thread piston rod | Extended piston rod | Direct mounting via thread, frontal | Swiveling rod eye mounting on the end cap | Trunnion mounting on bearing cap | Trunnion mounting on end cap
