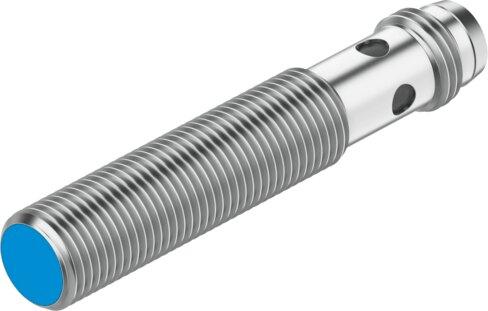

Name: Festo 8161195 Distance sensor SOIA-M8PB-PNLK-M8
Brand: Festo

Distance sensor SOIA-M8PB-PNLK-M8

The Festo part number 8161195 is a round inductive distance sensor conforming to EN 60947-5-2 with c UL us - Listed (OL) certification, CE marking as per EU EMC and RoHS directives, and UKCA marking to UK instructions for EMC and RoHS. This component measures position and displacement over a 0 mm to 2 mm range with a 0.01 mm displacement resolution, ±0.02 mm repetition accuracy, and an ambient temperature range of -25 °C to 70 °C. It features switchable PNP/NPN or push-pull switching output, a switchable switching element function, and a hysteresis ranging from 1 %FS to 20 %FS. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8161195
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8161195.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Conforms to standard: EN 60947-5-2
Certication: c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Position | Displacement
Measuring principle: Inductive
Method of measurement: Distance sensor
Rated operating distance: 0 mm...2 mm
Note on rated operating distance: SSC1.SP1: 1.7 mm | SSC2.SP1: 1.0 mm | Factory setting
Position measuring range: 0 mm...2 mm
Ambient temperature: -25 °C...70 °C
Displacement resolution: 0.01 mm
Repetition accuracy: ±0.02 mm
Temperature drift: ±10%
Switching output: PNP/NPN switchable | Push-pull
Switching element function: Switchable
Note on hysteresis: Factory setting: 5 %FS
Hysteresis: 1 %FS...20 %FS
On time: 100 ms
Measurement range speed: 1 mm/s...800 mm/s
Accuracy speed: +/- 20 %FS
Repetition accuracy speed: +/- -5 %FS
Acceleration value range: -3270 m/s²...3270 m/s²
Max. switching frequency: 750 Hz
Max. output current: 100 mA

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8161195. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
