Festo
8161197

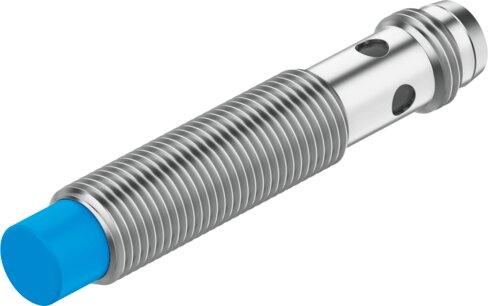

Distance sensor SOIA-M8PNB-PNLK-M8
The Festo 8161197 is a round inductive distance sensor conforming to EN 60947-5-2 with a measured variable of position and displacement across a 0 mm to 4 mm operating and measuring range. This c UL us-listed component features a 0.01 mm displacement resolution, ±0.04 mm repetition accuracy, ±10% temperature drift, push-pull and switchable PNP/NPN switching outputs, and an ambient temperature operating range of -25 °C to 70 °C. It complies with EU and UK EMC and RoHS directives, carrying CE and UKCA markings with RoHS-compliant materials and factory-set hysteresis of 5 %FS within a 1 %FS to 20 %FS range. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161197
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161197.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Position | Displacement
- Measuring principle
- Inductive
- Method of measurement
- Distance sensor
- Rated operating distance
- 0 mm...4 mm
- Note on rated operating distance
- SSC1.SP1: 3.4 mm | SSC2.SP1: 2.0 mm | Factory setting
- Position measuring range
- 0 mm...4 mm
- Ambient temperature
- -25 °C...70 °C
- Displacement resolution
- 0.01 mm
- Repetition accuracy
- ±0.04 mm
- Temperature drift
- ±10%
- Switching output
- PNP/NPN switchable | Push-pull
- Switching element function
- Switchable
- Note on hysteresis
- Factory setting: 5 %FS
- Hysteresis
- 1 %FS...20 %FS
- On time
- 100 ms
- Measurement range speed
- 1 mm/s...1100 mm/s
- Accuracy speed
- +/- 20 %FS
- Repetition accuracy speed
- +/- -5 %FS
- Acceleration value range
- -3270 m/s²...3270 m/s²
- Max. switching frequency
- 1400 Hz
- Max. output current
- 100 mA
