Festo
8161201

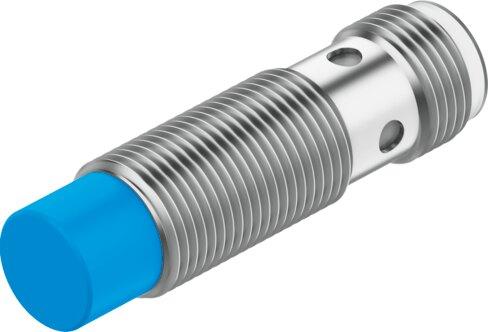

Distance sensor SOIA-M12PNB-PNLK-M12
The Festo 8161201 is a round inductive distance sensor conforming to EN 60947-5-2 with a measured variable range of 0 mm to 7 mm and a displacement resolution of 0.01 mm. This c UL us-listed component operates within an ambient temperature range of -25 °C to 70 °C, featuring switchable PNP/NPN push-pull switching outputs and a repetition accuracy of ±0.07 mm. It carries CE and UKCA markings in accordance with EMC and RoHS directives, alongside RoHS-compliant material construction. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161201
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161201.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- Round
- Conforms to standard
- EN 60947-5-2
- Certication
- c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Position | Displacement
- Measuring principle
- Inductive
- Method of measurement
- Distance sensor
- Rated operating distance
- 0 mm...7 mm
- Note on rated operating distance
- SSC1.SP1: 5.95 mm | SSC2.SP1: 3.5 mm | Factory setting
- Position measuring range
- 0 mm...7 mm
- Ambient temperature
- -25 °C...70 °C
- Displacement resolution
- 0.01 mm
- Repetition accuracy
- ±0.07 mm
- Temperature drift
- ±10%
- Switching output
- PNP/NPN switchable | Push-pull
- Switching element function
- Switchable
- Note on hysteresis
- Factory setting: 5 %FS
- Hysteresis
- 1 %FS...20 %FS
- Linearity error FS
- 3 %
- On time
- 100 ms
- Measurement range speed
- 1 mm/s...2100 mm/s
- Accuracy speed
- +/- 20 %FS
- Repetition accuracy speed
- +/- -5 %FS
- Acceleration value range
- -3270 m/s²...3270 m/s²
- Max. switching frequency
- 1400 Hz
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8161201. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
