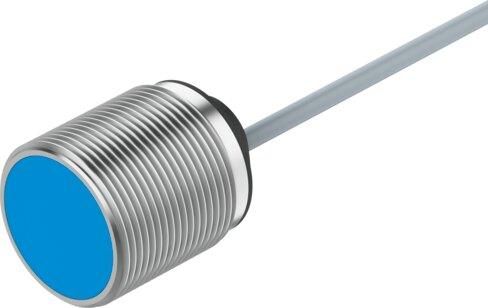

Name: Festo 8161206 Distance sensor SOIA-M30PB-PNLK-LE
Brand: Festo

Distance sensor SOIA-M30PB-PNLK-LE

The Festo 8161206 is an inductive round distance sensor featuring a 0 mm to 10 mm measured variable range with a 0.01 mm displacement resolution and ±0.1 mm repetition accuracy. Conforming to EN 60947-5-2, this c UL us-listed component includes push-pull and switchable PNP/NPN switching outputs alongside a switchable switching element function, operating within an ambient temperature range of -25 °C to 70 °C. It complies with EU and UK directives for EMC and RoHS. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8161206
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8161206.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Design: Round
Conforms to standard: EN 60947-5-2
Certication: c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Position | Displacement
Measuring principle: Inductive
Method of measurement: Distance sensor
Rated operating distance: 0 mm...10 mm
Note on rated operating distance: SSC1.SP1: 8.5 mm | SSC2.SP1: 5.0 mm | Factory setting
Position measuring range: 0 mm...10 mm
Ambient temperature: -25 °C...70 °C
Displacement resolution: 0.01 mm
Repetition accuracy: ±0.1 mm
Temperature drift: ±10%
Switching output: PNP/NPN switchable | Push-pull
Switching element function: Switchable
Note on hysteresis: Factory setting: 5 %FS
Hysteresis: 1 %FS...20 %FS
On time: 100 ms
Measurement range speed: 1 mm/s...2400 mm/s
Accuracy speed: +/- 20 %FS
Repetition accuracy speed: +/- -5 %FS
Acceleration value range: -3270 m/s²...3270 m/s²
Max. switching frequency: 1300 Hz
Max. output current: 100 mA
