Festo
8161441

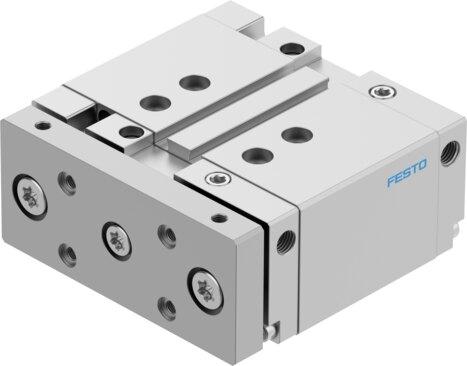

Guided drive DFM-40-25-B-PPV-A-KF
The Festo 8161441 is a double-acting industrial drive unit featuring a 40 mm piston diameter, a 25 mm stroke, and a yoke operating mode with recirculating ball bearing guidance. It incorporates adjustable pneumatic cushioning at both ends, accommodates position sensing via a proximity switch, and operates within a pressure range of 0.15 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This structural guide unit delivers a theoretical retracting force of 686 N and an advancing force of 754 N at 6 bar, while satisfying ISO 14644-1 Class 6 cleanroom suitability and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161441
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161441.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 40 mm
- Drive unit operating mode
- Yoke
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 °C...60 °C
- Impact energy in the end positions
- 0.7 J
- Theoretical force at 6 bar, retracting
- 686 N
- Theoretical force at 6 bar, advancing
- 754 N
- Alternative connections
- See product drawing
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- Wrought aluminum alloy
- Seals material
- NBR
- Housing material
- Wrought aluminum alloy
- Piston rod material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8161441. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
