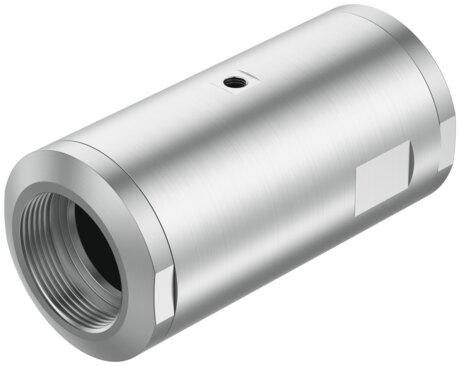

Reference imageConfirm configuration by manufacturer part number.
Festo
8161477
Pinch valve VZQA-C-M22U-50-TT-ALALE-2
The Festo 8161477 is a pneumatically operated, soft-sealing pinch valve featuring a 2/2-way monostable open valve function and a nominal width DN of 50 with 2 NPT fitting connections. This externally controlled component supports any mounting position via in-line installation, a reversible flow direction, and a medium pressure range of 0 MPa to 0.2 MPa with vacuum testing up to -0.09 MPa at room temperature. It operates at a pressure range of 0 MPa to 0.45 MPa, a nominal fitting pressure PN of 10, a differential pressure of 0.25 MPa, an overload pressure of 0.78 MPa, and a burst pressure of 1.6 MPa using rebound resilience for the reset method. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161477
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161477.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Pinch valve, pneumatically operated
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- 2 NPT
- Nominal width DN
- 50
- Valve function
- 2/2-way, monostable, open
- Flow direction
- Reversible
- Medium pressure
- 0 MPa...0.2 MPa | 0 bar...2 bar | 0 psi...29 psi
- Note on the medium pressure
- Use in the vacuum range was tested up to -0.09 MPa with the air at | room temperature. Depending on the application, a counter-vacuum | may have to be created on the control side to guarantee the media ow.
- Operating pressure
- 0 MPa...0.45 MPa | 0 bar...4.5 bar | 0 psi...65.25 psi
- Nominal pressure of tting PN
- 10
- Differential pressure
- 0.25 MPa | 2.5 bar | 36.25 psi
- Burst pressure
- 1.6 MPa | 16 bar | 232 psi
- Overload pressure
- 0.78 MPa | 7.8 bar | 113.1 psi
- Reset method
- Rebound resilience
- Type of control
- Externally controlled
