Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

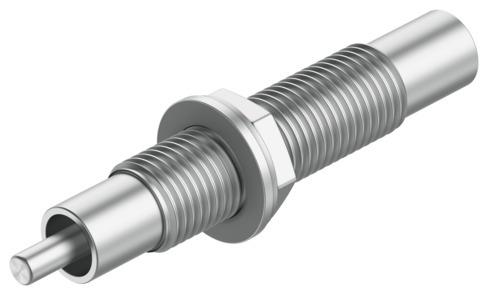

Reference imageConfirm configuration by manufacturer part number.
Festo
8161524
Shock absorber DYSD-Q11-8-8-Y1F-S-Y14
The Festo 8161524 is a single-acting industrial component featuring a size 8 specification, an 8 mm stroke, and self-adjusting cushioning with an 8 mm cushioning length. Weighing 40 g with a locknut mounting type, this unit operates in any mounting position and delivers a maximum stop force of 500 N, a max energy absorption per stroke of 4 J, and a max impact velocity of 1 m/s. It withstands moderate corrosion stress with a CRC rating of 2, conforms to VDMA24364-B2-L LABS standards, and functions within an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161524
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161524.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8
- Stroke
- 8 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 1 m/s
- Reset time at room temperature
- 0.2 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 8 mm
- Max. stop force
- 500 N
- Max. energy absorption per stroke
- 4 J
- Max. energy absorption per hour
- 18000 J
- Max. residual energy
- 0.02 J
- Resetting force
- 18 N
- Min. insertion force
- 60 N
- Product weight
- 40 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
- Piston rod material
- High-alloy steel
- Nut material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8161524. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
