Festo
8161528

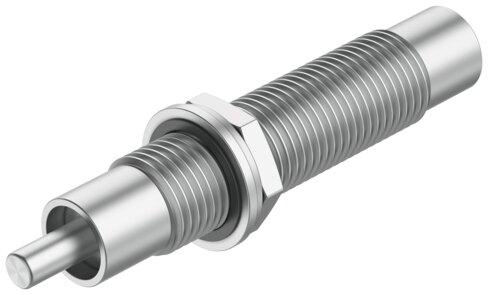

Shock absorber DYSD-Q11-16-15-Y1F-Y9
The Festo 8161528 is a single-acting industrial component featuring a size 16 format, a 15 mm stroke, and a pushing mode of operation with self-adjusting cushioning. This unit supports any mounting position, a max. impact velocity of 1 m/s, a max. stop force of 2000 N, and a maximum energy absorption of 40 J per stroke. Constructed with a CRC of 2 for moderate corrosion stress and VDMA24364-B2-L LABS conformity, it weighs 220 g and utilizes a locknut for mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161528
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161528.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Stroke
- 15 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 1 m/s
- Reset time at room temperature
- 0.3 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 15 mm
- Max. stop force
- 2000 N
- Max. energy absorption per stroke
- 40 J
- Max. energy absorption per hour
- 64000 J
- Max. residual energy
- 0.16 J
- Resetting force
- 46 N
- Min. insertion force
- 160 N
- Product weight
- 220 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel, galvanized
- Piston rod material
- High-alloy steel
- Nut material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8161528. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
