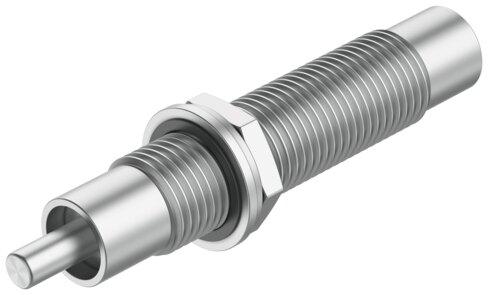

Reference imageConfirm configuration by manufacturer part number.
Festo
8161529
Shock absorber DYSD-Q11-16-15-Y1F-S-Y14
The Festo industrial component, part number 8161529, is a single-acting, pushing-mode device featuring a size 16 format, a 15 mm stroke, and self-adjusting cushioning across a 15 mm cushioning length. Engineered for universal installation with any mounting position, it utilizes a locknut mounting type and withstands moderate corrosion stress with a CRC of 2 alongside VDMA24364-B2-L LABS conformity. Operational within an ambient temperature range of 0 °C to 60 °C, the 220 g unit delivers a max stop force of 2000 N, a max impact velocity of 1 m/s, and a max energy absorption of 30 J per stroke with 0.16 J max residual energy. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161529
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161529.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Stroke
- 15 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 1 m/s
- Reset time at room temperature
- 0.3 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 15 mm
- Max. stop force
- 2000 N
- Max. energy absorption per stroke
- 30 J
- Max. energy absorption per hour
- 64000 J
- Max. residual energy
- 0.16 J
- Resetting force
- 46 N
- Min. insertion force
- 160 N
- Product weight
- 220 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel, galvanized
- Piston rod material
- High-alloy steel
- Nut material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8161529. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
