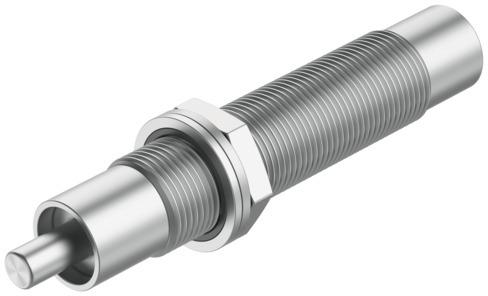

Reference imageConfirm configuration by manufacturer part number.
Festo
8161531
Shock absorber DYSD-Q11-20-16-Y1F-L-Y10
The Festo part number 8161531 is a single-acting pushing industrial component featuring a size 20 designation and a 16 mm stroke with self-adjusting cushioning. This unit supports mounting in any position using a locknut, delivers a maximum stop force of 3000 N, and handles up to 90 J of energy absorption per stroke within an ambient temperature range of 0 °C to 60 °C. Featuring a product weight of 385 g, it provides a resetting force of 75 N, a minimum insertion force of 260 N, and a CRC rating of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161531
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161531.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Stroke
- 16 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 1 m/s
- Reset time at room temperature
- 0.3 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 16 mm
- Max. stop force
- 3000 N
- Max. energy absorption per stroke
- 90 J
- Max. energy absorption per hour
- 92000 J
- Max. residual energy
- 0.32 J
- Resetting force
- 75 N
- Min. insertion force
- 260 N
- Product weight
- 385 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel, galvanized
- Piston rod material
- High-alloy steel
- Nut material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8161531. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
