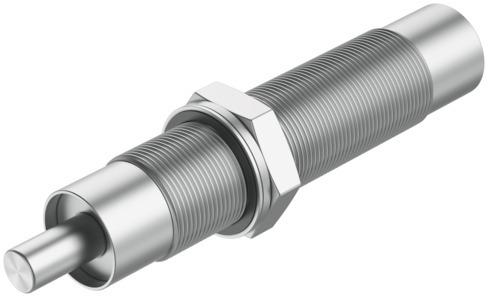

Reference imageConfirm configuration by manufacturer part number.
Festo
8161536
Shock absorber DYSD-Q11-32-25-Y1F-L-Y10
The Festo 8161536 is a single-acting industrial component featuring a size 32 format and a 25 mm stroke, engineered for pushing operation with a minimum insertion force of 480 N and a resetting force of 150 N. This unit incorporates self-adjusting cushioning over a 25 mm cushioning length, achieving a maximum stop force of 6000 N, a maximum energy absorption of 270 J per stroke, and a maximum impact velocity of 1 m/s. Constructed for mounting in any position using a locknut, it operates within an ambient temperature range of 0 °C to 60 °C, exhibits a corrosion resistance class of 2 for moderate corrosion stress, and has a product weight of 1050 g. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161536
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161536.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 32
- Stroke
- 25 mm
- Cushioning
- Self-adjusting
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 1 m/s
- Reset time at room temperature
- 0.3 s
- Mode of operation
- Pushing | Single-acting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 25 mm
- Max. stop force
- 6000 N
- Max. energy absorption per stroke
- 270 J
- Max. energy absorption per hour
- 180000 J
- Max. residual energy
- 2 J
- Resetting force
- 150 N
- Min. insertion force
- 480 N
- Product weight
- 1050 g
- Type of mounting
- With locknut
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- Steel, galvanized
- Piston rod material
- High-alloy steel
- Nut material
- Steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8161536. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
