Festo
8161608

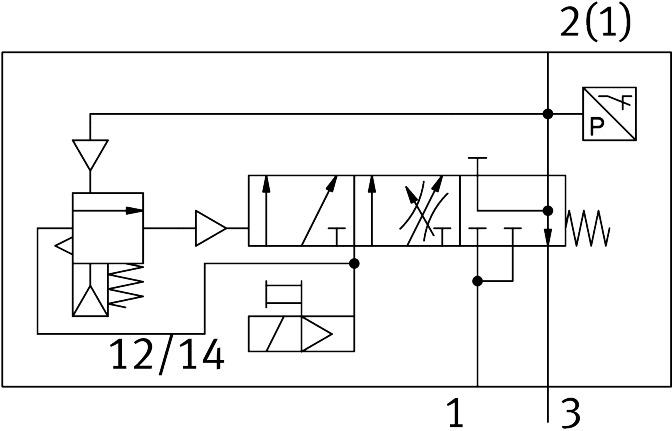

Soft-start valve VABF-S6-1-P5A4S2YE-G12-1T1L-PZ
Engineered with a 40 mm valve size, this Festo 8161608 industrial component features a piston gate valve structural design with a soft sealing principle and piloted internal pilot air supply. It operates via electrical actuation with a mechanical spring reset, supporting a negative overlap lap, non-reversible flow direction, and NC contact switching element function alongside detenting and self-resetting manual overrides. The unit provides pressurization and exhaust valve functions with a maximum positive test pulse with a 0 signal of 2000 µs and a maximum negative test pulse on a 1 signal of 1200 µs, while meeting vibration and shock resistance requirements under severity level 2. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8161608
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8161608.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse on 1 signal
- 1200 µs
- Width
- 40 mm
- Length
- 155 mm
- Width dimension
- 41 mm
- Valve size
- 40 mm
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Actuation type
- Electrical
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Self-resetting via electrical control signal
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Valve function
- Pressurization | Exhaust
- Switching element function
- NC contact
- Lap
- Negative overlap
- Additional functions
- Holding current reduction
- Note on forced dynamization
- Switching frequency at least once a month
- Signal status display
- Yellow LED, valve actuation | Green LED, pressure switch, exhausted status
- Switching position sensing
- Via pressure switch, exhausted status
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Changeover pressure
- Not adjustable
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8161608. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
