Festo
8162034

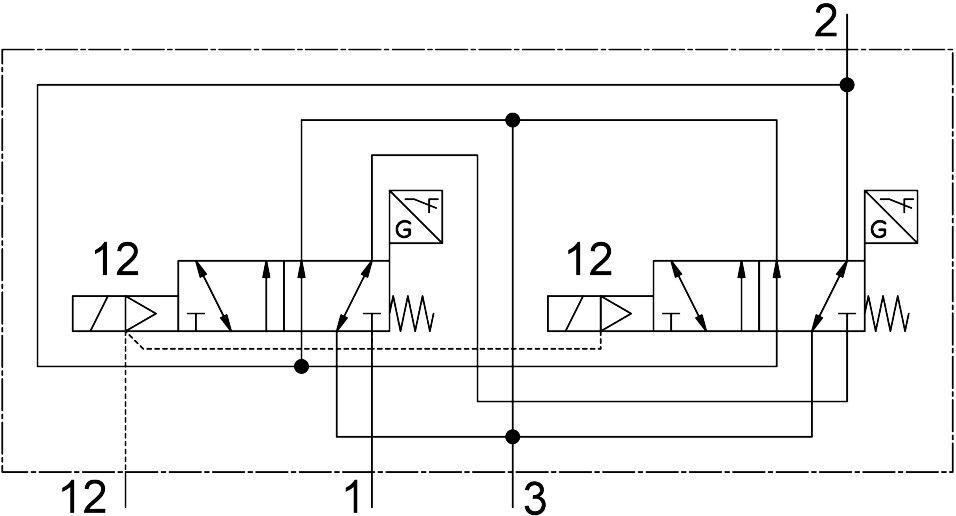

Control block VOFA-L26-T32C-MZ-G14-1C1-APP
The Festo 8162034 is a 65 mm wide 3/2-way closed monostable industrial component featuring a piloted piston gate valve structure with an external pilot air supply port and soft sealing principle. Operating on 24V DC with a 0 bar to 10 bar operating pressure range and a normal nominal flow rate of 1050 l/min, this electrical actuation device includes an adjustable exhaust air function, mechanical spring reset, and G1/4 pneumatic working port. It delivers IP65 and NEMA 4 protection, conforms to EN 60947-5-2, holds UL recognition, and carries CE and UKCA markings compliant with applicable EMC and machinery directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8162034
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8162034.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 3/2-way, closed, monostable
- Actuation type
- Electrical
- Width
- 65 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1050 l/min
- Pneumatic working port
- G1/4
- Operating voltage
- 24V DC
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar | 0 psi...145 psi
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | NEMA 4
- Certication
- UL - Recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU machinery directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK instructions for machines
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- EN 60947-5-2
- Manual override
- None
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Non-reversible
- Measuring principle
- Inductive
- Lap
- Positive overlap
- Sensor reverse polarity protection
- For all electrical connections
- Safety function
- Exhausting | Tamper protection, protection against unexpected start-up
- Performance Level (PL)
- Exhaust/up to category 4, performance level e | Protection against manipulation, protection against unexpected start- | up/up to category 4, performance level e
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8162034. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
