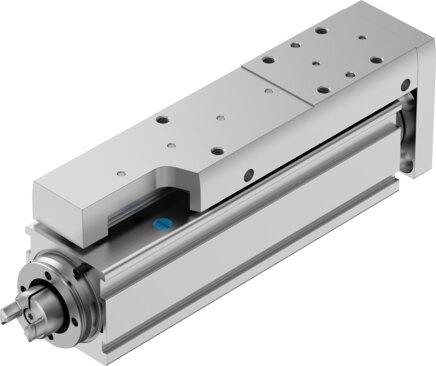

Reference imageConfirm configuration by manufacturer part number.
Festo
8162070
Mini slide EGSC-BS-KF-25-50-2P
The Festo 8162070 is an electrical mini-slide featuring a ball screw with a 6 mm screw diameter, 2 mm/U spindle pitch, and a 50 mm working stroke with a 0 mm stroke reserve. This component incorporates a recirculating ball bearing guide, operates with either a stepper or servo motor, and achieves a maximum speed of 0.133 m/s, a maximum rotational speed of 4000 rpm, a maximum acceleration of 5 m/s², and a repetition accuracy of ±0.015 mm with 100% duty cycle. Featuring a reversing backlash of 150 µm, position sensing via proximity switch, and homing via positive fixed stop block, negative fixed stop block, or reference switch, it is rated for any mounting position with a corrosion resistance class of 0 and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8162070
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8162070.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm
- Size
- 25
- Stroke reserve
- 0 mm
- Reversing backlash
- 150 µm
- Screw diameter
- 6 mm
- Spindle pitch
- 2 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electrical mini-slide | With ball screw
- Motor type
- Stepper motor | Servo motor
- Homing
- Fixed stop block positive | Fixed stop block negative | Reference switch
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch
- Max. acceleration
- 5 m/s²
- Max. rotational speed
- 4000 rpm
- Max. speed
- 0.133 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Noise level
- 45 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.005 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- Fixed bearing dynamic basic load rating
- 2810 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8162070. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
