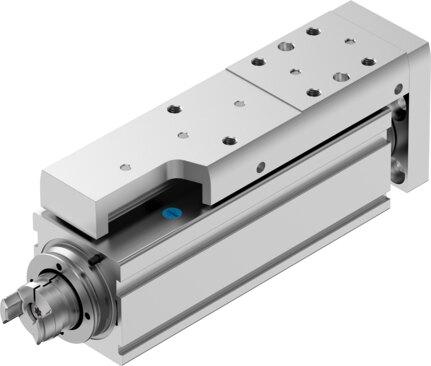

Reference imageConfirm configuration by manufacturer part number.
Festo
8162074
Mini slide EGSC-BS-KF-32-50-3P
The Festo 8162074 is an electrical mini-slide with a ball screw, featuring a 50 mm working stroke, size 32 profile, and an 8 mm screw diameter with a 3 mm/U spindle pitch. Integrated with a recirculating ball bearing guide, it supports stepper or servo motors, achieves a maximum speed of 0.188 m/s at 3750 rpm, and maintains a repetition accuracy of ±0.015 mm with a 100% duty cycle. Homing is configured via a reference switch or fixed stop block in positive or negative directions, while position sensing operates through a proximity switch. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8162074
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8162074.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 50 mm
- Size
- 32
- Stroke reserve
- 0 mm
- Reversing backlash
- 150 µm
- Screw diameter
- 8 mm
- Spindle pitch
- 3 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electrical mini-slide | With ball screw
- Motor type
- Stepper motor | Servo motor
- Homing
- Fixed stop block positive | Fixed stop block negative | Reference switch
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch
- Max. acceleration
- 5 m/s²
- Max. rotational speed
- 3750 rpm
- Max. speed
- 0.188 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Noise level
- 55 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.009 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- Fixed bearing dynamic basic load rating
- 3795 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8162074. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
