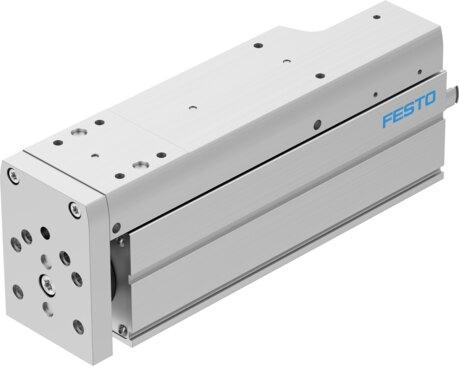

Reference imageConfirm configuration by manufacturer part number.
Festo
8162083
Mini slide EGSC-BS-KF-60-125-5P
The Festo 8162083 is an electrical mini-slide featuring a ball screw with a 12 mm screw diameter and a 5 mm/U spindle pitch, delivering a 125 mm working stroke and a 0 mm stroke reserve. This component integrates a recirculating ball bearing guide supporting any mounting position, operating with a max speed of 0.25 m/s, a max rotational speed of 3000 rpm, and a max acceleration of 5 m/s² at a 100% duty cycle. Featuring a 150 µm reversing backlash and a repetition accuracy of ±0.015 mm, the unit accommodates stepper or servo motors, allows position sensing via proximity switch, and supports homing through a reference switch or fixed stop blocks. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8162083
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8162083.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 125 mm
- Size
- 60
- Stroke reserve
- 0 mm
- Reversing backlash
- 150 µm
- Screw diameter
- 12 mm
- Spindle pitch
- 5 mm/U
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Electrical mini-slide | With ball screw
- Motor type
- Stepper motor | Servo motor
- Homing
- Fixed stop block positive | Fixed stop block negative | Reference switch
- Spindle type
- Ball screw
- Position sensing
- Via proximity switch
- Max. acceleration
- 5 m/s²
- Max. rotational speed
- 3000 rpm
- Max. speed
- 0.25 m/s
- Repetition accuracy
- ±0.015 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Noise level
- 55 dB(A)
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Impact energy in the end positions
- 0.044 mJ
- Note on the impact energy in the end positions
- At maximum speed of the reference run of 0.01 m/s
- Fixed bearing dynamic basic load rating
- 13321 N
