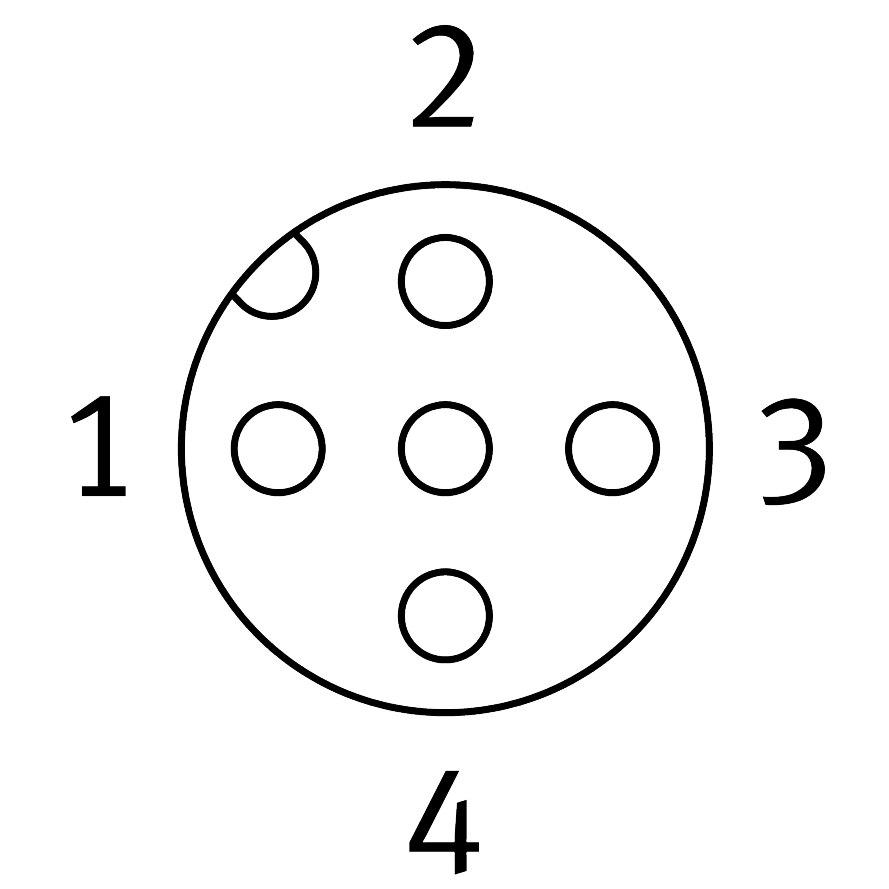

Reference imageConfirm configuration by manufacturer part number.
Festo
8162292
Socket NECB-M12W4-C2
The Festo part number 8162292 is an industrial component featuring an angled cable outlet and a product weight of 25 g, operating within a DC operating voltage range of 0 V to 60 V. This c UL us-listed component (UL E474609) conforms to EN 61076-2-101 and includes an M12x1 A-coded socket with 5 pins (4 occupied) on the field device side, alongside a screw terminal connection with 4 occupied wires on the control side. It supports a contact durability of 100 mating cycles and is subject to an application note restricting supply circuits for electrically actuated Festo valves to energy-limited circuits with a maximum current of 4 A at a maximum open circuit voltage of 30 VDC. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8162292
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8162292.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-101
- Certication
- c UL us - Listed (OL)
- Certicate issuing authority
- UL E474609
- Contact durability
- 100
- Cable outlet
- Angled
- Product weight
- 25 g
- Application note
- Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF 18 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Screw terminal
- Electrical connection 2, number of pins/wires
- 4
- Electrical connection 2, occupied pins/wires
- 4
- DC operating voltage range
- 0 V...60 V
- Operating voltage range AC
- 0 V...48 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Protective earth connection
- Not available
- Cable tting
- Pg9
- Cable diameter
- 3.8 mm...9 mm
- Connection cross section
- 0.14 mm²...0.75 mm²
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8162292. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
