Name: Festo 8162296 Plug NECB-S-M12G5-C2
Brand: Festo

Plug NECB-S-M12G5-C2

The Festo part number 8162296 is an industrial component featuring a straight cable outlet, a product weight of 19 g, and a DC operating voltage range of 0 V to 60 V with contact durability rated at 100 cycles. Electrical connection 1 on the control side utilizes an M12x1 A-coded 5-pin plug conforming to EN 61076-2-101 with a screw-type lock, while electrical connection 2 on the field device side employs a 5-pin screw terminal. This c UL us-listed unit, certified under UL file E474609, is restricted to energy-limited circuits supplying Festo electrically actuated valves with a maximum current of 4 A at a maximum open circuit voltage of 30 VDC. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8162296
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8162296.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 61076-2-101
Certication: c UL us - Listed (OL)
Certicate issuing authority: UL E474609
Contact durability: 100
Cable outlet: Straight
Product weight: 19 g
Application note: Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
Electrical connection 1, function: Control side
Electrical connection 1, design: Round
Electrical connection 1, connection type: Plug

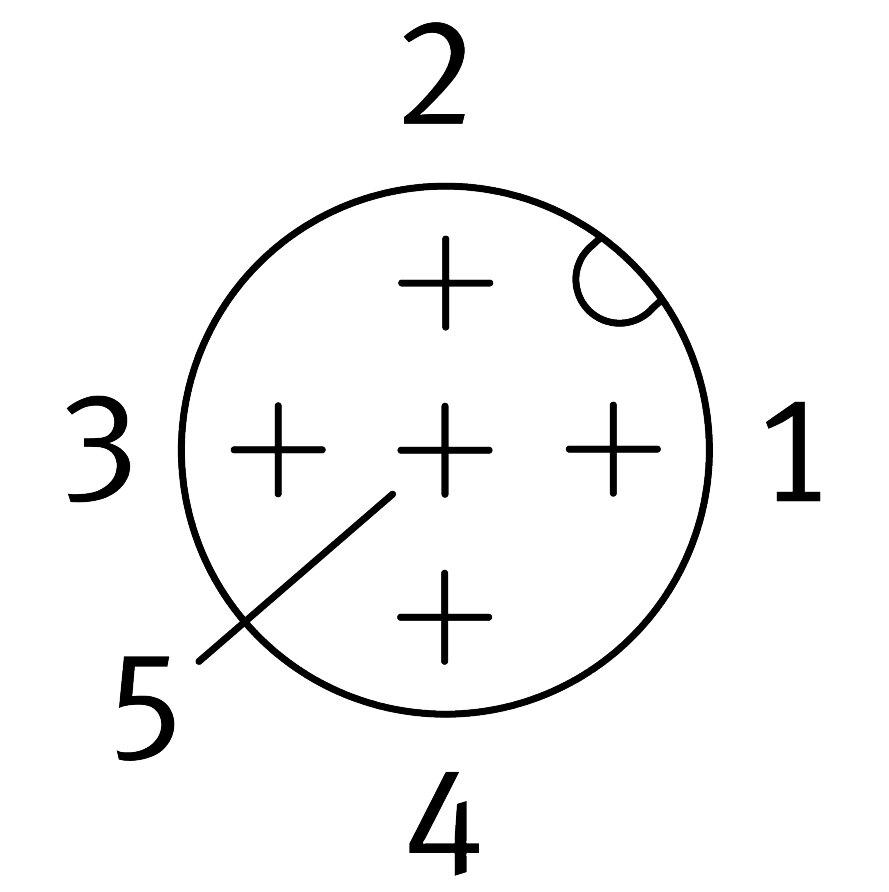

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, occupied pins/wires: 5
Electrical connection 1, type of mounting: Screw-type lock with hexagon AF 18 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
Electrical connection 2, function: Field device side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Screw terminal
Electrical connection 2, number of pins/wires: 5
Electrical connection 2, occupied pins/wires: 5
DC operating voltage range: 0 V...60 V
Operating voltage range AC: 0 V...48 V
Current rating at 40° C: 4 A
Surge resistance: 1.5 kV
Protective earth connection: Not available
Cable tting: Pg7
Cable diameter: 2.1 mm...7 mm
Connection cross section: 0.14 mm²...0.75 mm²
