Festo
8162297
Plug NECB-S-M12G5-C2-D
The Festo industrial component, part number 8162297, features an M12x1 A-coded 5-pin plug for the control side and dual cable connections utilizing screw terminals on the field device side, supporting a DC operating voltage range of 0 V to 60 V. This 25 g unit conforms to standard EN 61076-2-101 and is c UL us-listed under UL certificate E474609 with a contact durability of 100 cycles. Electrical connection 1 utilizes a rotatable screw-type lock with hexagon AF 18 and longitudinal knurl, while application notes strictly limit supply circuits for electrically actuated Festo valves to a maximum current of 4 A at a maximum open circuit voltage of 30 VDC. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8162297
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8162297.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-101
- Certication
- c UL us - Listed (OL)
- Certicate issuing authority
- UL E474609
- Contact durability
- 100
- Cable outlet
- Straight
- Product weight
- 25 g
- Application note
- Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology

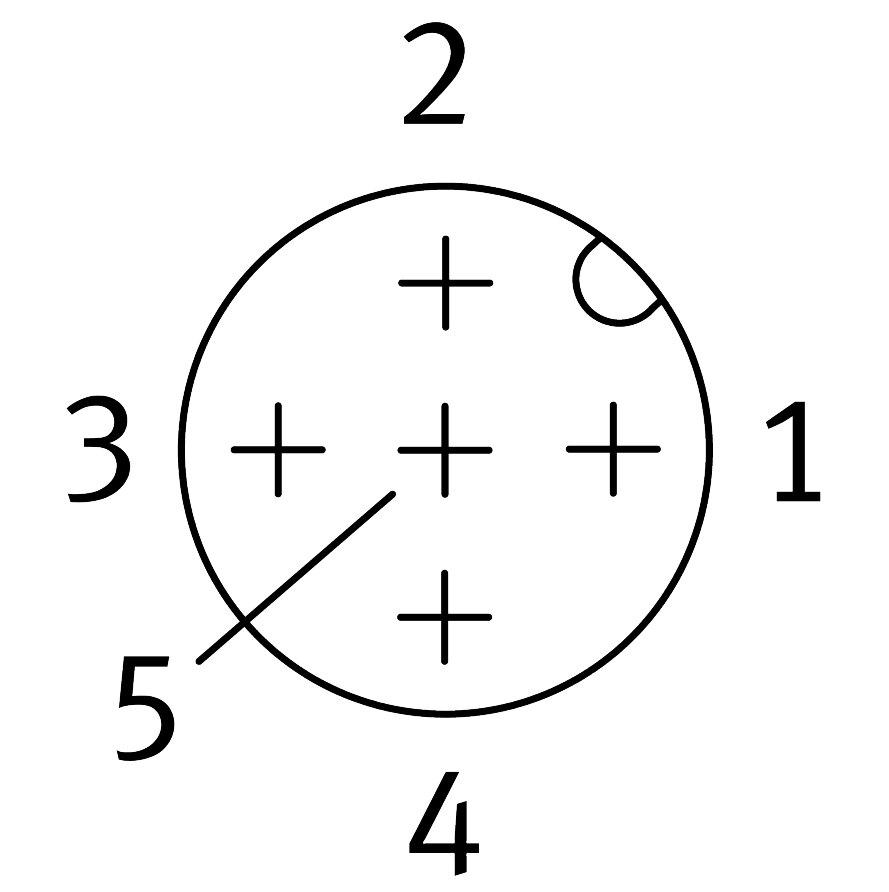

- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 5
- Electrical connection 1, occupied pins/wires
- 5
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF 18 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Field device side
- Electrical connection 2, connection type
- 2x cables
- Electrical connection 2, connection technology
- Screw terminal
- Electrical connection 2, number of pins/wires
- 5
- Electrical connection 2, occupied pins/wires
- 5
- DC operating voltage range
- 0 V...60 V
- Operating voltage range AC
- 0 V...48 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Protective earth connection
- Not available
- Cable tting
- Pg11
- Cable diameter
- 2.1 mm...5.6 mm
- Note on the cable diameter
- 2 cable through-feeds available
