Festo
8162298
Plug NECB-S-M8G3-C2
The Festo 8162298 is an industrial component featuring an M8x1 A-coded round plug connection on the control side with 3 pins and a screw-type lock with hexagon AF 9 and longitudinal knurl. On the field device side, it utilizes a screw terminal connection with 3 occupied pins and a straight cable outlet, supporting a DC operating voltage range of 0 V to 60 V. This UL-listed unit conforms to EN 61076-2-104, provides a contact durability rating of 100, weighs 5 g, and is restricted to energy-limited circuits supplying Festo electrically actuated valves with a maximum current of 4 A at an open circuit voltage up to 30 VDC. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8162298
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8162298.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- EN 61076-2-104
- Certication
- c UL us - Listed (OL)
- Certicate issuing authority
- UL E474609
- Contact durability
- 100
- Cable outlet
- Straight
- Product weight
- 5 g
- Application note
- Only energy-limited circuits with a maximum current of 4 A at a max. | open circuit voltage of 30 VDC are permitted to be used for supplying | electrically actuated valves from Festo.
- Electrical connection 1, function
- Control side
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104

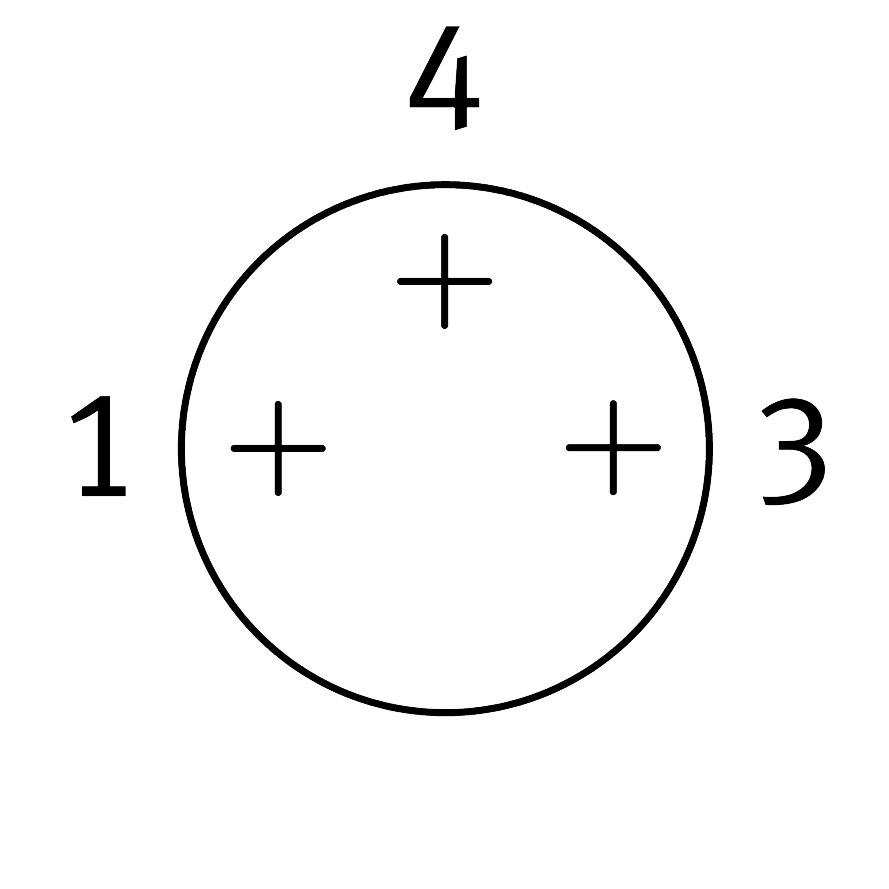

- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, occupied pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF 9 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Field device side
- Electrical connection 2, connection type
- Cable
- Electrical connection 2, connection technology
- Screw terminal
- Electrical connection 2, number of pins/wires
- 3
- Electrical connection 2, occupied pins/wires
- 3
- DC operating voltage range
- 0 V...60 V
- Operating voltage range AC
- 0 V...48 V
- Current rating at 40° C
- 4 A
- Surge resistance
- 1.5 kV
- Protective earth connection
- Not available
- Cable tting
- 3/8-24 UNF-2A
- Cable diameter
- 2.1 mm...5 mm
- Connection cross section
- 0.14 mm²...0.75 mm²
