Festo
8163214
Pressure vacuum generator PGVA-2-P1V1-Q4-A
The Festo 8163214 industrial component operates on a nominal DC voltage of 24 V within a range of 21.6 V to 26.4 V with a permissible voltage fluctuation of +/- 10%, consuming 11 W of electrical power through a 5-pin terminal strip socket supporting load and functional earth connections. Delivering dual output pressures of -0.062 MPa and 0.08 MPa at a standard flow rate of 1.2 l/min, this device features a 0.01 µm grade of filtration, an integrated LED display, any mounting position, and Python script configuration support, while complying with RCM, CE, and UKCA directives alongside EN 60068-2-6 and FN 942017-4 vibration resistance standards in dimensions measuring 169 mm by 208 mm by 55 mm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8163214
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8163214.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Grade of ltration
- 0.01 µm
- Conguration support
- Python scripts
- Display
- LED
- Output pressure 1
- -0.062 MPa
- Output pressure 2
- 0.08 MPa
- Standard ow rate (standardized according to DIN 1343)
- 1.2 l/min
- Dimensions W x L x H
- 169 mm x 208 mm x 55 mm
- DC operating voltage range
- 21.6 V...26.4 V
- Electrical power consumption
- 11 W
- Nominal operating voltage DC
- 24 V
- Permissible voltage uctuations
- +/- 10%
- Power supply, function
- Load and functional earth
- Power supply, type of connection
- Socket

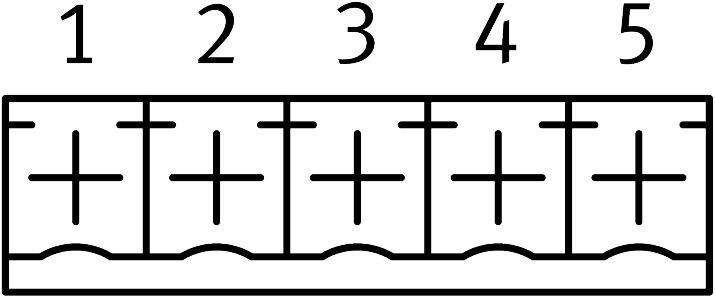

- Power supply, connection technology
- Terminal strip
- Power supply, number of pins/wires
- 5
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 85%
- Sound power level
- 55 dB(A)
- Degree of protection
- IP20
- Ambient temperature
- 0 °C...40 °C
- Product weight
- 1.8 kg
