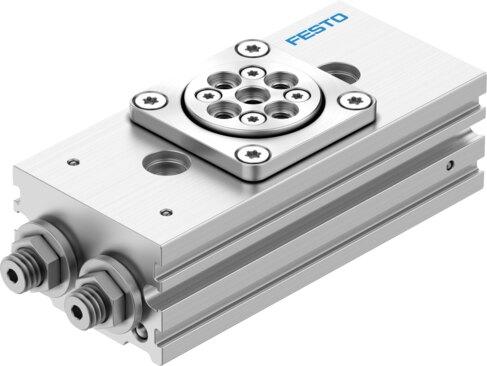

Name: Festo 8163605 Quarter turn actuator DRRS-8-180-FH-PA
Brand: Festo

Quarter turn actuator DRRS-8-180-FH-PA

This double-acting industrial component from Festo utilizes a gear rack and pinion structural design operating on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a 0.3 MPa to 0.8 MPa pressure range. The unit provides a 180-degree swivel angle with an adjustable setting range of +10 to -100 degrees for each end position, a minimum angle of 45 degrees, a maximum angle of 200 degrees, a 32.2-degree cushioning angle, and elastic cushioning rings or pads at both ends. Additional technical attributes include size 8, 0.05 mm axial eccentricity of the plate, 0.05 degree repetition accuracy, position sensing via proximity switch, and any mounting position. It features CRC corrosion resistance class 1, VDMA24364-C1-L LABS conformity, ISO 14644-1 class 9 cleanroom suitability, and suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a), while permitting oil lubrication operation. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8163605
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8163605.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 8
Cushioning angle: 32.2 deg
Setting range of swivel angle for each end position: +10 /-100 deg
Axial eccentricity of plate: 0.05 mm
Swivel angle: 180 deg
Min. swivel angle: 45 deg
Max. swivel angle: 200 deg
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Structural design: Gear rack/pinion
Position sensing: Via proximity switch
Operating pressure: 0.3 MPa...0.8 MPa | 3 bar...8 bar
Repetition accuracy: 0.05 deg
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 9 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Ambient temperature: 0 °C...60 °C
Theoretical torque at 6 bar: 0.29 Nm
Permissible mass moment of inertia: 0.0005 kgm²
Max. bending moment: 1.3 Nm
Max. axial load static: 50 N
Product weight: 135 g
Type of mounting: Alternatively: | With mounting kit | With through-hole | With internal thread
