Festo
8163607

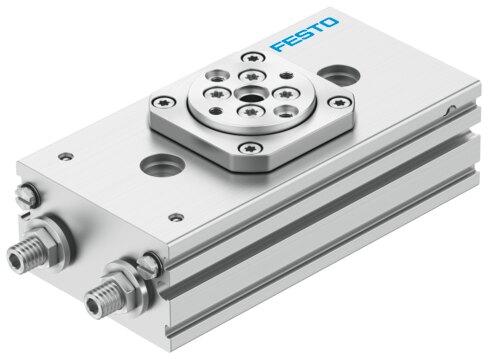

Semi-rotary drive DRRS-12-180-FH-PA
This Festo industrial component features a size 12 gear rack and pinion structural design operating in a double-acting mode with compressed air as per ISO 8573-1:2010 [7:4:4]. It offers a 180-degree swivel angle with a setting range of +10/-100 degrees for each end position, a minimum swivel angle of 45 degrees, a maximum swivel angle of 200 degrees, and a cushioning angle of 23.5 degrees using elastic cushioning rings or pads at both ends. Operating pressure spans from 0.3 MPa to 0.8 MPa (3 bar to 8 bar), achieving a repetition accuracy of 0.05 degrees and an axial eccentricity of the plate of 0.05 mm across any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8163607
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8163607.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Cushioning angle
- 23.5 deg
- Setting range of swivel angle for each end position
- +10 /-100 deg
- Axial eccentricity of plate
- 0.05 mm
- Swivel angle
- 180 deg
- Min. swivel angle
- 45 deg
- Max. swivel angle
- 200 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Repetition accuracy
- 0.05 deg
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Theoretical torque at 6 bar
- 0.9 Nm
- Permissible mass moment of inertia
- 0.005 kgm²
- Max. bending moment
- 2 Nm
- Max. axial load static
- 80 N
- Product weight
- 310 g
- Type of mounting
- Alternatively: | With mounting kit | With through-hole | With internal thread
