Festo
8163608

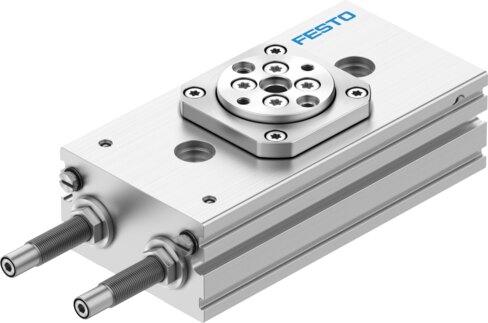

Semi-rotary drive DRRS-12-180-FH-Y9A
This Festo industrial component, part number 8163608, is a double-acting gear rack/pinion structural design featuring a size of 12 and a nominal 180-deg swivel angle with a setting range of +10/-100 deg for each end position. Operating at a pressure range of 0.2 MPa to 0.8 MPa (2 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:4:4], it incorporates internal hydraulic cushioning normal, a 34.7-deg cushioning angle, and position sensing via proximity switch. The unit achieves a 0.05-mm axial eccentricity of the plate, a 0.05-deg repetition accuracy, and can be mounted in any position while meeting ISO 14644-1 Class 9 cleanroom suitability and VDMA24364-C1-L LABS conformity with a CRC of 1. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8163608
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8163608.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Cushioning angle
- 34.7 deg
- Setting range of swivel angle for each end position
- +10 /-100 deg
- Axial eccentricity of plate
- 0.05 mm
- Swivel angle
- 180 deg
- Min. swivel angle
- 80 deg
- Max. swivel angle
- 200 deg
- Cushioning
- Internal hydraulic cushioning normal
- Mounting position
- Any
- Structural design
- Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Repetition accuracy
- 0.05 deg
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Theoretical torque at 6 bar
- 0.9 Nm
- Permissible mass moment of inertia
- 0.01 kgm²
- Max. bending moment
- 2 Nm
- Max. axial load static
- 80 N
- Product weight
- 310 g
- Type of mounting
- Alternatively: | With mounting kit | With through-hole | With internal thread
