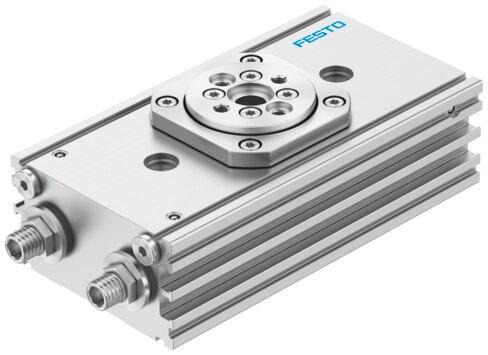

Name: Festo 8163609 Semi-rotary drive DRRS-16-180-FH-PA
Brand: Festo

Semi-rotary drive DRRS-16-180-FH-PA

This Festo industrial component features a size 16 gear rack and pinion structural design operating with a double-acting mode of operation. The unit provides a 180-degree swivel angle with a setting range of +10 to -100 degrees for each end position, a 19.5-degree cushioning angle, and elastic cushioning rings or pads at both ends. Operating pressure ranges from 0.3 MPa to 0.8 MPa utilizing compressed air as per ISO 8573-1:2010 [7:4:4], supporting position sensing via proximity switch and any mounting position. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8163609
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8163609.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 16
Cushioning angle: 19.5 deg
Setting range of swivel angle for each end position: +10 /-100 deg
Axial eccentricity of plate: 0.07 mm
Swivel angle: 180 deg
Min. swivel angle: 45 deg
Max. swivel angle: 200 deg
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Structural design: Gear rack/pinion
Position sensing: Via proximity switch
Operating pressure: 0.3 MPa...0.8 MPa | 3 bar...8 bar
Repetition accuracy: 0.07 deg
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 9 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Ambient temperature: 0 °C...60 °C
Theoretical torque at 6 bar: 2.1 Nm
Permissible mass moment of inertia: 0.008 kgm²
Max. bending moment: 4 Nm
Max. axial load static: 140 N
Product weight: 630 g
Type of mounting: Alternatively: | With mounting kit | With through-hole | With internal thread
