Name: Festo 8163612 Semi-rotary drive DRRS-20-180-FH-Y9A
Brand: Festo

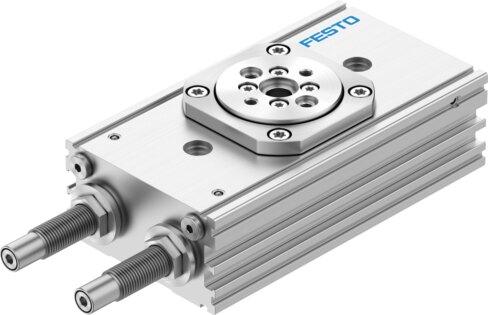

Semi-rotary drive DRRS-20-180-FH-Y9A

This Festo industrial component, part number 8163612, utilizes a gear rack and pinion structural design with a double-acting mode of operation and a size 20 specification. It delivers a 180-degree swivel angle with a setting range of +10 to -100 degrees for each end position, a minimum swivel angle of 80 degrees, a maximum swivel angle of 200 degrees, a 32.8-degree cushioning angle, and internal hydraulic cushioning normal. Featuring an operating pressure of 0.2 MPa to 0.8 MPa (2 bar to 8 bar) using compressed air as per ISO 8573-1:2010 [7:4:4], position sensing via proximity switch, a repetition accuracy of 0.07 degrees, and an axial eccentricity of plate of 0.07 mm, the unit is rated for any mounting position, corrosion resistance class 1, VDMA24364-C1-L LABS conformity, ISO 14644-1 cleanroom class 9, and Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8163612
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8163612.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 20
Cushioning angle: 32.8 deg
Setting range of swivel angle for each end position: +10 /-100 deg
Axial eccentricity of plate: 0.07 mm
Swivel angle: 180 deg
Min. swivel angle: 80 deg
Max. swivel angle: 200 deg
Cushioning: Internal hydraulic cushioning normal
Mounting position: Any
Structural design: Gear rack/pinion
Position sensing: Via proximity switch
Operating pressure: 0.2 MPa...0.8 MPa | 2 bar...8 bar
Repetition accuracy: 0.07 deg
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 9 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
Ambient temperature: 0 °C...60 °C
Theoretical torque at 6 bar: 3.3 Nm
Permissible mass moment of inertia: 0.03 kgm²
Max. bending moment: 5 Nm
Max. axial load static: 350 N
Product weight: 790 g
Type of mounting: Alternatively: | With mounting kit | With through-hole | With internal thread

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8163612. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
