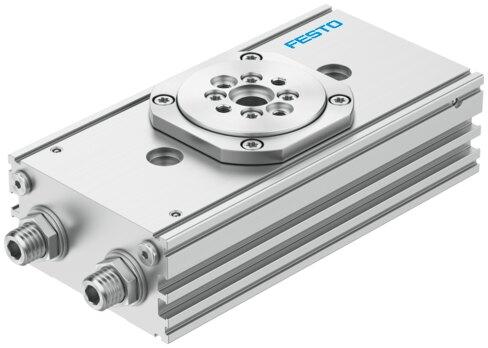

Reference imageConfirm configuration by manufacturer part number.
Festo
8163613
Semi-rotary drive DRRS-25-180-FH-PA
This double-acting Festo industrial component, part number 8163613, utilizes a gear rack and pinion structural design with a size 25 format and a 180-degree swivel angle. Operating within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], the unit features elastic cushioning rings or pads at both ends with a 25.5-degree cushioning angle and a setting range of +10 to -100 degrees for each end position. The assembly includes position sensing via proximity switch, an axial eccentricity of plate and repetition accuracy of 0.07 mm and 0.07 degrees respectively, and is suitable for Li-ion battery production with reduced Cu/Zn/Ni values alongside ISO 14644-1 class 9 cleanroom compatibility. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8163613
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8163613.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Cushioning angle
- 25.5 deg
- Setting range of swivel angle for each end position
- +10 /-100 deg
- Axial eccentricity of plate
- 0.07 mm
- Swivel angle
- 180 deg
- Min. swivel angle
- 45 deg
- Max. swivel angle
- 200 deg
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Gear rack/pinion
- Position sensing
- Via proximity switch
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Repetition accuracy
- 0.07 deg
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Storage temperature
- -20 °C...60 °C
- Ambient temperature
- 0 °C...60 °C
- Theoretical torque at 6 bar
- 6.6 Nm
- Permissible mass moment of inertia
- 0.04 kgm²
- Max. bending moment
- 10 Nm
- Max. axial load static
- 450 N
- Product weight
- 1240 g
- Type of mounting
- Alternatively: | With mounting kit | With through-hole | With internal thread
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8163613. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
