Festo
8163619

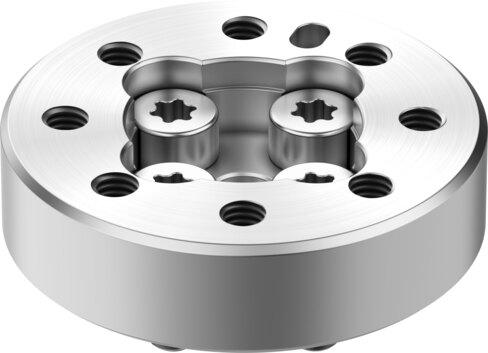

Push-on flange DARF-Q13-8-1
The Festo part number 8163619 is an industrial adapter for rotary actuators featuring a size 8 specification and any mounting position. Constructed with an anodized wrought aluminum alloy flange, high-alloy stainless steel sleeve, and coated steel screws, this 11 g component delivers a maximum static axial load of 50 N and a maximum bending moment of 1.3 Nm across an ambient temperature range of 0 °C to 60 °C. It meets RoHS compliance, CRC 1 low corrosion stress, VDMA24364-C1-L LABS conformity, ISO 14644-1 cleanroom class 9 standards, and F1a reduced Cu/Zn/Ni suitability for Li-ion battery production. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8163619
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8163619.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 8
- Mounting position
- Any
- Structural design
- Adapter for rotary actuator
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Max. bending moment
- 1.3 Nm
- Max. axial load static
- 50 N
- Product weight
- 11 g
- Type of mounting
- Via through-hole and centering sleeve
- Note on materials
- RoHS compliant
- Material of ange
- Wrought aluminum alloy, anodized
- Sleeve material
- high-alloy stainless steel
- Material of screws
- Coated steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8163619. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
