Festo
8163622

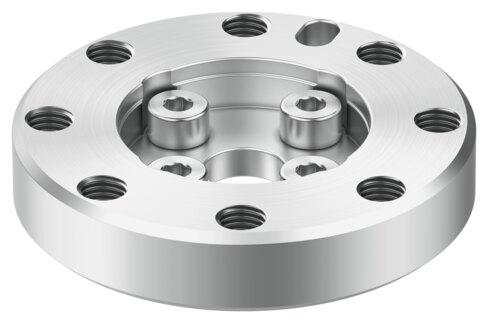

Push-on flange DARF-Q13-16-1
The Festo 8163622 is a size 16 adapter for rotary actuator featuring any mounting position and a structural design with a wrought aluminum alloy anodized flange, high-alloy stainless steel sleeve, and coated steel screws. This industrial component weighs 52 g, resists low corrosion stress (CRC 1), conforms to VDMA24364-C1-L LABS (PWIS), achieves ISO 14644-1 cleanroom suitability class 9, and is suitable for battery production with reduced Cu/Zn/Ni values (F1a) while supporting a maximum bending moment of 4 Nm, a maximum static axial load of 140 N, and an ambient temperature range of 0 °C to 60 °C. Mounting is accomplished via through-hole and centering sleeve, with RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8163622
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8163622.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Mounting position
- Any
- Structural design
- Adapter for rotary actuator
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 9 according to ISO 14644-1
- Ambient temperature
- 0 °C...60 °C
- Max. bending moment
- 4 Nm
- Max. axial load static
- 140 N
- Product weight
- 52 g
- Type of mounting
- Via through-hole and centering sleeve
- Note on materials
- RoHS compliant
- Material of ange
- Wrought aluminum alloy, anodized
- Sleeve material
- high-alloy stainless steel
- Material of screws
- Coated steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8163622. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
