Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

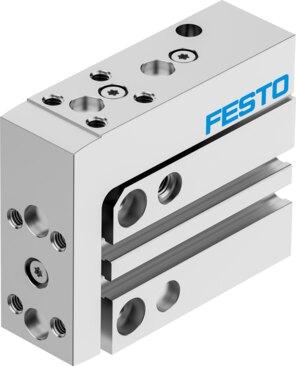

Reference imageConfirm configuration by manufacturer part number.
Festo
8164051
Mini slide DGSS-6-10-E1A
The Festo 8164051 industrial component is a double-acting yoke, piston rod, and slide structural design featuring a 6 mm size, a 6 mm piston diameter, and a 10 mm stroke. Operating at pressures from 0.15 MPa to 0.8 MPa (1.5 bar to 8 bar / 21.75 psi to 116 psi) with compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit incorporates non-adjustable elastomer cushioning at both ends and a recirculating ball bearing guide for a maximum speed of 0.5 m/s and a repetition accuracy of 0.3 mm or less. It functions within an ambient temperature range of -10 °C to 60 °C, supports position sensing via a proximity switch, and meets ISO 14644-1 Class 6 cleanroom standards with a CRC rating of 1 and VDMA24364-C1-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8164051
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8164051.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm
- Size
- 6
- Piston diameter
- 6 mm
- Cushioning
- Elastomer cushioning, at both ends, stroke not adjustable
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Yoke | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.15 MPa...0.8 MPa | 1.5 bar...8 bar | 21.75 psi...116 psi
- Max. speed
- 0.5 m/s
- Repetition accuracy
- <= 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.01 J
- Cushioning length
- 0.9 mm
- Max. force Fy
- 296 N
- Max. force Fz
- 296 N
- Max. torque Mx
- 0.8 Nm
- Max. torque My
- 0.7 Nm
- Max. torque Mz
- 0.7 Nm
- Theoretical force at 6 bar, retracting
- 13 N
- Theoretical force at 6 bar, advancing
- 17 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8164051. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
