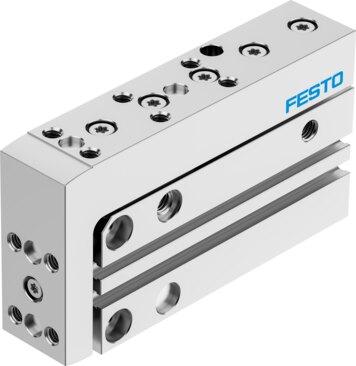

Name: Festo 8164065 Mini slide DGSS-10-40-E1A
Brand: Festo

Mini slide DGSS-10-40-E1A

The Festo part number 8164065 is a double-acting industrial component featuring a 10 mm piston diameter, a 10 size rating, and a 40 mm stroke. Configured with a yoke, piston rod, and slide structural design, it incorporates recirculating ball bearing guidance and non-adjustable elastomer cushioning at both ends for a maximum speed of 0.5 m/s and a repetition accuracy of 0.3 mm or less. This unit operates within a pressure range of 1 bar to 8 bar (14.5 psi to 116 psi) using compressed air conforming to ISO 8573-1:2010 [7:4:4], supporting position sensing via a proximity switch across an ambient temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8164065
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8164065.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 40 mm
Size: 10
Piston diameter: 10 mm
Cushioning: Elastomer cushioning, at both ends, stroke not adjustable
Mounting position: Any
Guide: Recirculating ball bearing
Structural design: Yoke | Piston rod | Slide
Position sensing: Via proximity switch
Operating pressure: 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
Max. speed: 0.5 m/s
Repetition accuracy: <= 0.3 mm
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-C1-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
Ambient temperature: -10 °C...60 °C
Impact energy in the end positions: 0.018 J
Cushioning length: 1.5 mm
Max. force Fy: 655 N
Max. force Fz: 655 N
Max. torque Mx: 2.4 Nm
Max. torque My: 2.1 Nm
Max. torque Mz: 2.1 Nm
Theoretical force at 6 bar, retracting: 39 N
Theoretical force at 6 bar, advancing: 47 N
