Festo
8164076

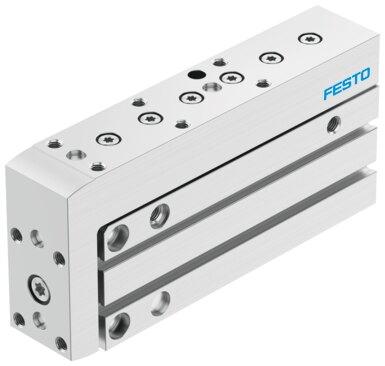

Mini slide DGSS-16-60-E1A
This Festo industrial component, part number 8164076, is a double-acting slide unit featuring a 16 mm piston diameter, a 60 mm stroke, and non-adjustable elastomer cushioning at both ends. Designed with a yoke, piston rod, and recirculating ball bearing guide, it operates at pressures between 1 bar and 8 bar (14.5 psi to 116 psi) with a maximum speed of 0.5 m/s and a repetition accuracy of 0.3 mm or less. The unit accommodates compressed air media per ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -10 °C to 60 °C, supports position sensing via proximity switch, and meets ISO 14644-1 Class 6 cleanroom standards alongside VDMA24364-C1-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8164076
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8164076.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 60 mm
- Size
- 16
- Piston diameter
- 16 mm
- Cushioning
- Elastomer cushioning, at both ends, stroke not adjustable
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Yoke | Piston rod | Slide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...0.8 MPa | 1 bar...8 bar | 14.5 psi...116 psi
- Max. speed
- 0.5 m/s
- Repetition accuracy
- <= 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-C1-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 °C...60 °C
- Impact energy in the end positions
- 0.03 J
- Cushioning length
- 0.65 mm
- Max. force Fy
- 641 N
- Max. force Fz
- 641 N
- Max. torque Mx
- 3 Nm
- Max. torque My
- 1.8 Nm
- Max. torque Mz
- 1.8 Nm
- Theoretical force at 6 bar, retracting
- 104 N
- Theoretical force at 6 bar, advancing
- 121 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8164076. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
