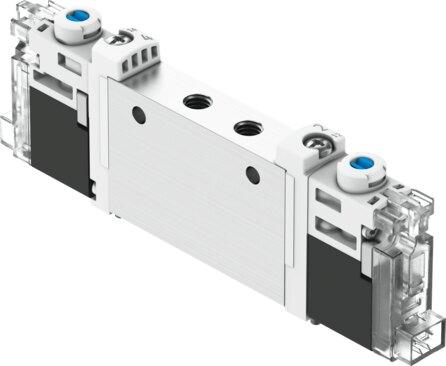

Reference imageConfirm configuration by manufacturer part number.
Festo
8164351
Solenoid valve VUVG-L10-P53U-T-M7-1H2L-F1A
The Festo 8164351 is an electrical 5/3-way pressurized industrial component featuring a 10 mm valve size, a piston gate valve structural design, and an internal pilot air supply port with a 3.5 mm nominal width. This piloted valve operates on 24V DC at an operating pressure ranging from 0.3 MPa to 0.8 MPa (3 bar to 8 bar), delivering a normal nominal flow rate of 290 l/min through M7 pneumatic working ports. It incorporates a mechanical spring reset, soft sealing principle, adjustable exhaust air function, detenting, non-detenting, and covered manual override options, and carries an IP40 degree of protection along with RCM and c UL us (OL) certifications issued by UL MH19482. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8164351
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8164351.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 290 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Nominal width
- 3.5 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Indeterminate overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
- Switching time off
- 36 ms
- On switching time
- 14 ms
- Changeover time
- 19 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8164351. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
