Festo
8164409

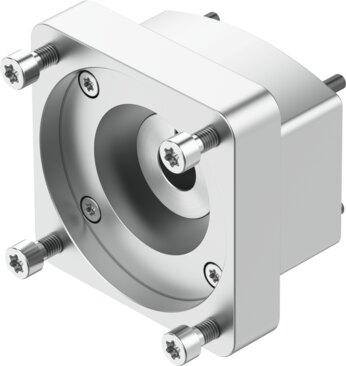

Axial kit EAMM-A-Y62-100A
The Festo industrial component, part number 8164409, features an actuator interface code of Y62 and a motor input interface code of 100A with a transferable torque of 17 Nm and a maximum rotational speed of 6000 rpm. Weighing 1047 g, the unit operates within an ambient temperature range of -10 °C to 60 °C, supports a storage temperature between -25 °C and 60 °C, and accommodates 0 to 95% relative air humidity with an IP40 degree of protection. Built with VDMA24364-B2-L LABS conformity and RoHS-compliant materials, this hardware supports any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8164409
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8164409.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Transferable torque
- 17 Nm
- Product weight
- 1047 g
- Interface code, actuator
- Y62
- Interface code, motor in
- 100A
- Note on materials
- RoHS compliant
