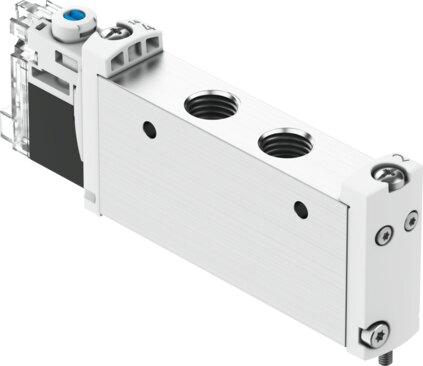

Reference imageConfirm configuration by manufacturer part number.
Festo
8164557
Solenoid valve VUVG-L14-M52-MT-G18-1H2L-F1A
The Festo 8164557 is a 14 mm electrical 5/2-way monostable piston gate valve featuring a piloted type of control with internal pilot air supply and positive overlap. Operating at 24V DC within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), this component delivers a normal nominal flow rate of 730 l/min through G1/8 pneumatic working ports. It incorporates a mechanical spring reset, soft sealing principle, adjustable exhaust air function, and a nominal width of 5.6 mm, backed by c UL us recognition and RCM compliance. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8164557
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8164557.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 730 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- Certicate issuing authority
- UL MH19482
- Degree of protection
- IP40
- Nominal width
- 5.6 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting | Covered
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
- Switching time off
- 51 ms
- On switching time
- 13 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
- Max. negative test pulse on 1 signal
- 900 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8164557. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
