Festo
8164654

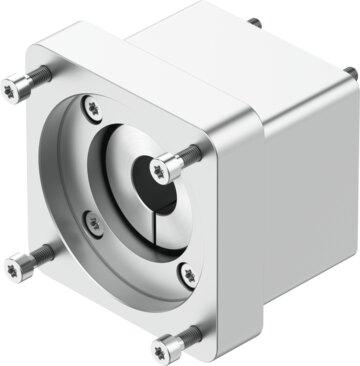

Axial kit EAMM-A-X48-80P
The Festo industrial component, part number 8164654, features a transferable torque of 17 Nm and supports a maximum rotational speed of 6000 rpm with an actuator interface code of X48 and a motor input interface code of 80P. Weighing 821 g with an IP40 degree of protection and RoHS-compliant materials, this unit accommodates any mounting position and VDMA24364-B2-L LABS conformity. Operational parameters include an ambient temperature range of -10 °C to 60 °C, storage temperatures between -25 °C and 60 °C, and relative air humidity from 0 to 95%. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8164654
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8164654.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Max. rotational speed
- 6000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Transferable torque
- 17 Nm
- Product weight
- 821 g
- Interface code, actuator
- X48
- Interface code, motor in
- 80P
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8164654. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
