Name: Festo 8165129 Pressure vacuum generator PGVA-1-P-D30-Q4-A
Brand: Festo

Pressure vacuum generator PGVA-1-P-D30-Q4-A

The Festo 8165129 is an industrial component featuring an any mounting position, a 0.01 µm grade of filtration, and dual output pressures of -0.045 MPa and 0.045 MPa with a standard flow rate of 1 l/min. Measuring 210 mm x 208 mm x 76 mm, this device operates on a nominal DC voltage of 24 V within a 21.6 V to 26.4 V range, drawing 19 W of electrical power through a 5-pin terminal strip socket connection. It supports configuration via CODESYS V3, Python scripts, and an integrated web server, displays status via LED, and carries RCM compliance along with CE and UKCA markings for EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8165129
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8165129.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Grade of ltration: 0.01 µm
Conguration support: CODESYS V3 | Python scripts | Integrated web server
Parameterization: System Parameters | CODESYS V3
Display: LED
Output pressure 1: -0.045 MPa
Output pressure 2: 0.045 MPa
Standard ow rate (standardized according to DIN 1343): 1 l/min
Dimensions W x L x H: 210 mm x 208 mm x 76 mm
DC operating voltage range: 21.6 V...26.4 V
Electrical power consumption: 19 W
Nominal operating voltage DC: 24 V
Permissible voltage uctuations: +/- 10%
Power supply, function: Digital outputs | Load and functional earth
Power supply, type of connection: Socket
Power supply, connection technology: Terminal strip

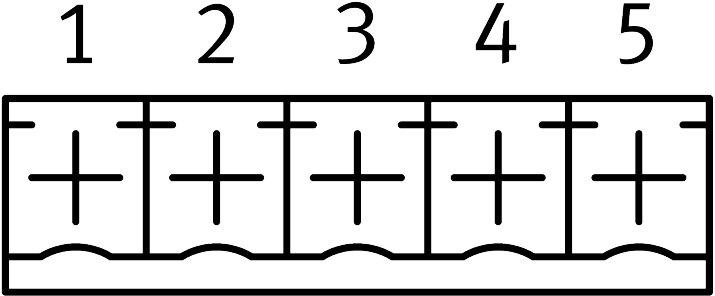

Power supply, number of pins/wires: 5
Certication: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 85% | Non-condensating
