Name: Festo 8165295 Rod clevis CRSG-M4
Brand: Festo

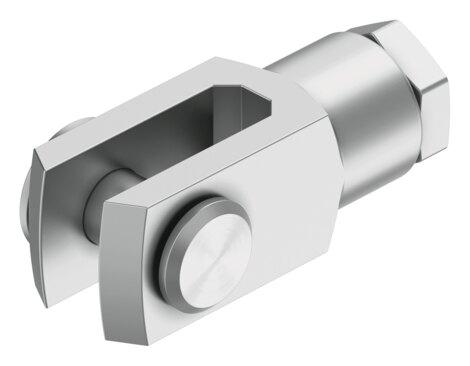

Rod clevis CRSG-M4

The Festo part number 8165295 is an M4 industrial component based on ISO 8140 and conforming to DIN 71752 standards, featuring an internal thread M4 connection and an any mounting position. Constructed with high-alloy steel for the rod clevis, bolt, nut, and fuse, this RoHS-compliant unit exhibits a CRC 1 low corrosion stress rating, VDMA24364-B2-L LABS conformity, and an ambient temperature range of -40 °C to 150 °C with a product weight of 8 g. It is suitable for the production of Li-ion batteries with specific exclusions for metals containing more than 5% by mass of copper, zinc, or nickel. Submit the exact part number, quantity, and application requirements to receive a quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8165295
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8165295.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: M4
Mounting position: Any
Based on norm: ISO 8140
Conforms to standard: DIN 71752
Threaded connection: Internal thread M4
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Metals with more than 5% by mass of copper, zinc or nickel are excluded | from use. The exceptions are nickel in steel, chemically nickel-plated | surfaces, printed circuit boards, cables, electrical plug connectors and | coils.
Ambient temperature: -40 °C...150 °C
Product weight: 8 g
Rod clevis material: High-alloy steel
Note on materials: RoHS compliant
Bolt material: High-alloy steel
Nut material: High-alloy steel
Fuse material: High-alloy steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8165295. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
