Festo
8165458

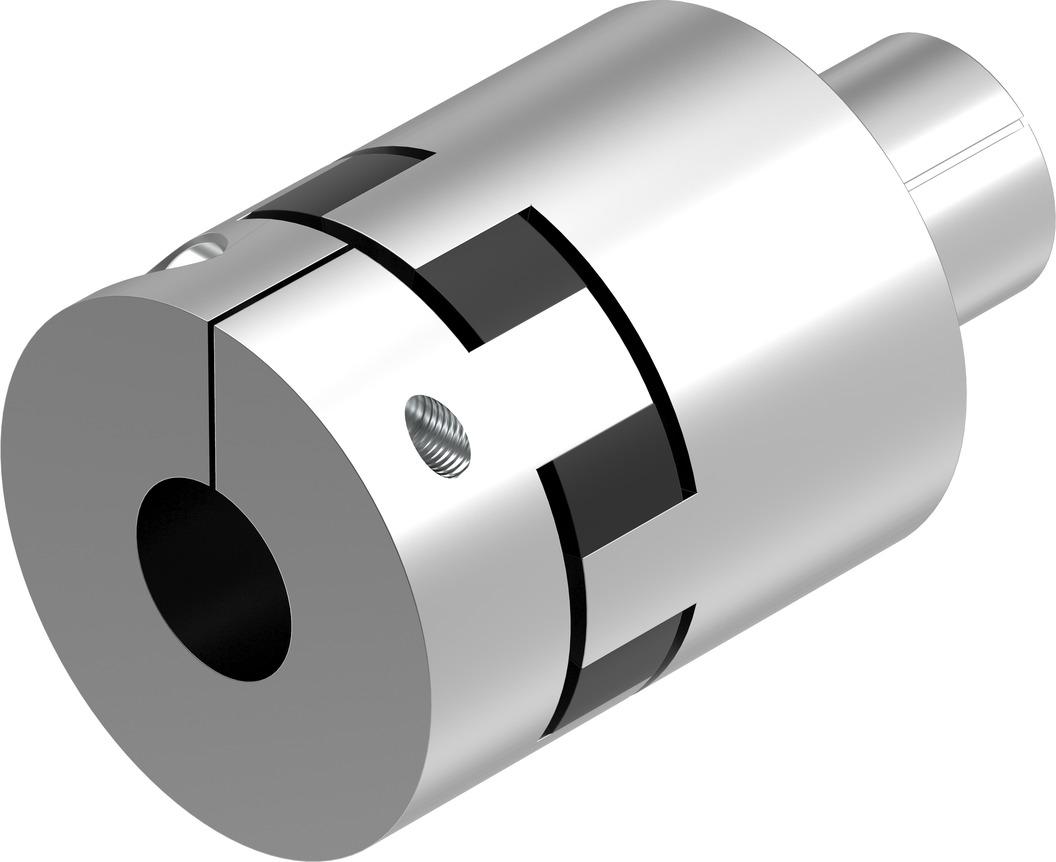

Coupling EAMD-67-91-32-32X32-U
The Festo 8165458 industrial component features a size 67 build with a nominal length of 91 mm and dual 32 mm holder diameters supporting any mounting position. It operates up to a maximum rotational speed of 4500 1/min, transferring a torque of 180 Nm with a mass moment of inertia of 858 kgmm² and a product weight of 1586 g. Designed with RoHS-compliant materials, the unit meets VDMA24364-B2-L LABS conformity and functions within storage and ambient temperature ranges of -25 °C to 60 °C alongside 0 to 95% relative air humidity. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8165458
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8165458.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Diameter of holder 1
- 32 mm
- Diameter of holder 2
- 32 mm
- Size
- 67
- Nominal length
- 91 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 1/min
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Ambient temperature
- -25 °C...60 °C
- Mass moment of inertia
- 858 kgmm²
- Transferable torque
- 180 Nm
- Product weight
- 1586 g
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8165458. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
