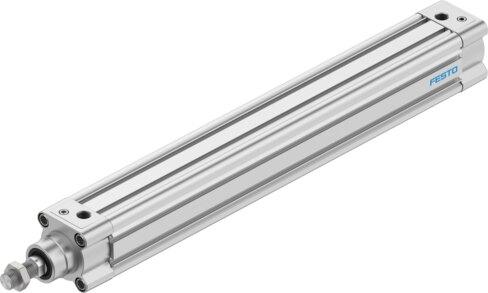

Reference imageConfirm configuration by manufacturer part number.
Festo
8165587
Standards-based cylinder DSBC-50-400-D3-PPVA-N3
The Festo 8165587 is a double-acting industrial component featuring a 50 mm piston diameter, a 400 mm stroke, and an ISO 15552 conforming profile barrel with an M16x1.5 external piston rod thread. It operates at pressures from 0.04 MPa to 1.2 MPa using compressed air per ISO 8573-1:2010 [7:4:4] with optional oil lubrication, delivering a theoretical retracting force of 990 N at 6 bar. This unit incorporates adjustable pneumatic cushioning at both ends with a 22 mm cushioning length, 1 J end-position impact energy, position sensing via proximity switch, and a Class 2 moderate corrosion resistance construction rated for ambient temperatures between -20 °C and 80 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8165587
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8165587.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 400 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1 J
- Cushioning length
- 22 mm
- Theoretical force at 6 bar, retracting
- 990 N
- Theoretical force at 6 bar, advancing
- 1178 N
- Moving mass
- 1365 g
- Moving mass at 0 mm stroke
- 365 g
- Additional moving mass per 10 mm stroke
- 25 g
- Product weight
- 4336 g
- Basic weight with 0 mm stroke
- 1216 g
- Additional weight per 10 mm stroke
- 78 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
