Festo
8165686

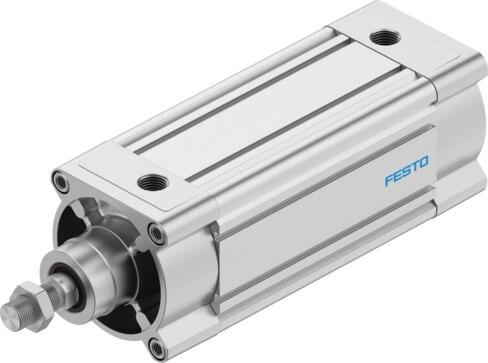

Standards-based cylinder DSBC-100-160-D3-PPSA-N3
Manufactured by Festo, part number 8165686 is a double-acting industrial component featuring a 100 mm piston diameter and a 160 mm stroke conforming to ISO 15552. This profile barrel unit operates within a pressure range of 0.04 MPa to 1.2 MPa utilizing compressed air per ISO 8573-1:2010 [7:4:4], incorporates self-adjusting pneumatic end-position cushioning, and delivers a theoretical retraction force of 4418 N at 6 bar. Position sensing occurs via proximity switch, and the assembly supports any mounting position with an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8165686
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8165686.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 160 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.04 MPa...1.2 MPa | 0.4 bar...12 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 2.5 J
- Cushioning length
- 31 mm
- Theoretical force at 6 bar, retracting
- 4418 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Moving mass
- 1624 g
- Moving mass at 0 mm stroke
- 1000 g
- Additional moving mass per 10 mm stroke
- 39 g
- Product weight
- 6368 g
- Basic weight with 0 mm stroke
- 3728 g
- Additional weight per 10 mm stroke
- 152 g
- Type of mounting
- Alternatively: | With internal thread | With accessories
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8165686. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
